Description

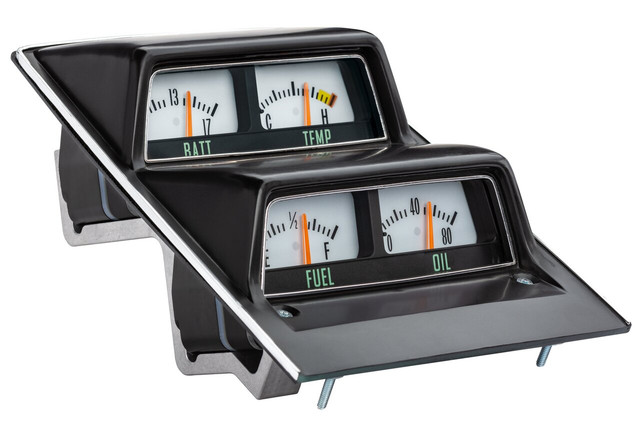

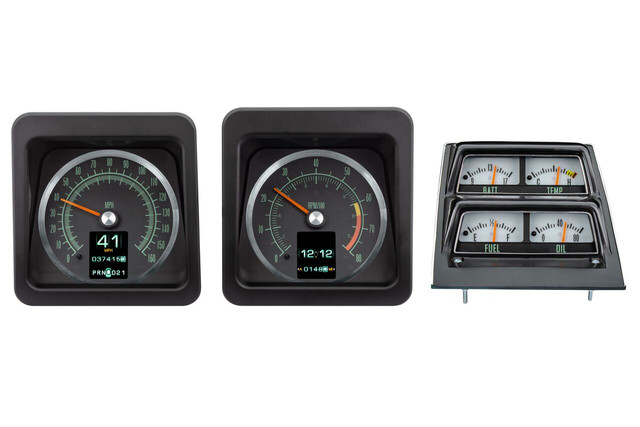

The RTX-69C-CAC-X brings Dakota Digital's RTX Series technology into the 1969 Chevy Camaro equipped with the optional center console gauge layout. Designed to replicate the factory console instrumentation, this system retains the stock look while adding late-model features such as LED backlighting, stepper motor needle movement, and two full-color TFT message centers.

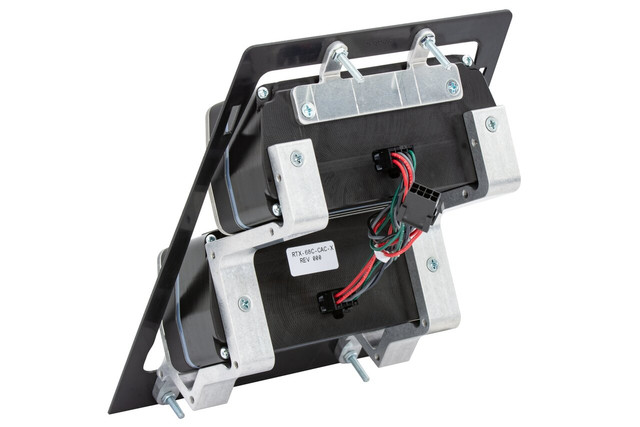

Every effort has been put into matching OEM design elements for layout, face styling, and indicators, so at a glance the gauges appear factory original. Once powered on, the full LED backlighting and customizable color options reveal the true capability of this modern instrument system. CNC-machined housings are paired with in-house designed and built electronics, and a central control box simplifies installation and setup.

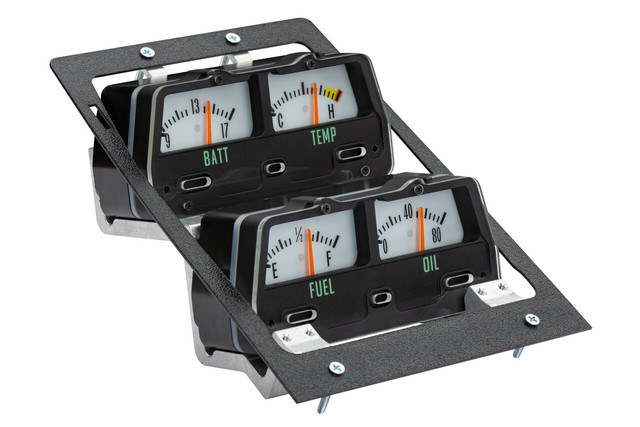

Dash and console bezel are not supplied with this kit, and the system is designed to use OEM or reproduction-style bezels. This kit cannot be split up.
Key Features

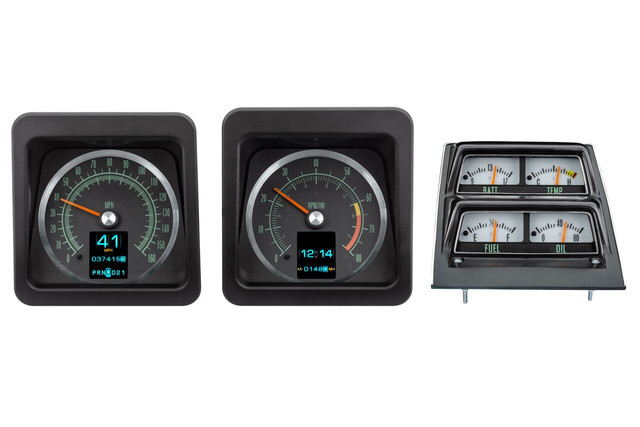

- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- Two high-definition, full-color TFT message centers, fully configurable
- Stepper motor needle movement for precise, smooth gauge operation
- Pushbutton control via included two-sided rocker switch for setup and driving-mode functions
- Configurable through a free mobile app for Android and Apple devices
- Built-in indicators including turn signals, high beam, check engine, parking brake, and cruise control, with two user-programmable auxiliary input indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-69C-CAC-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part #130011 for pulse generator relocation sold separately)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Dash and console bezel not included; system uses OEM or reproduction-style bezels
- Kit cannot be split up
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control
