Description

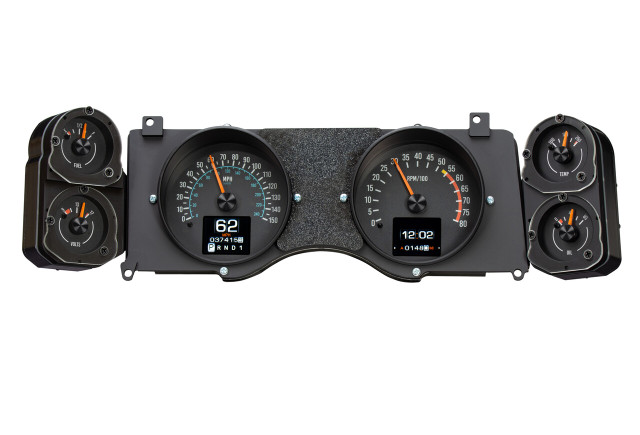

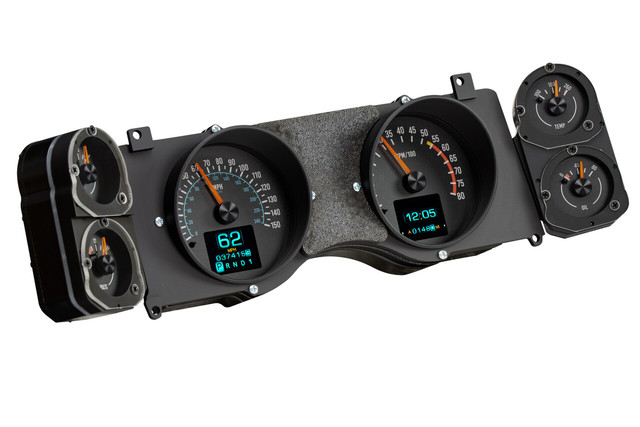

The Dakota Digital RTX-70C-CAM-X Instrument System is styled after the original equipment found in 1970-78 Chevy Camaros, designed to fit a stock or reproduction instrument bezel. This kit also fits 1979-81 bezels, but does not fit Firebird applications. Side by side with a stock cluster, the RTX system is nearly indistinguishable until the key is turned, at which point the LED backlighting and TFT displays reveal its late-model capability.
Every effort has been made to incorporate OEM design elements in the layout, face styling, and indicators, while a pair of high-definition TFT message centers can be configured to display a wide range of information. CNC machined housings are filled with in-house designed electronics, and a central control box simplifies installation and setup.

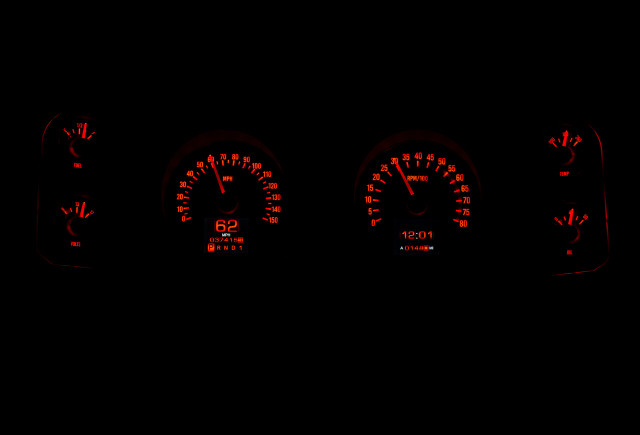

Full LED backlighting provides strikingly sharp contrast for easy viewing day or night, with over 30 user-selectable color options for needle, sweep, and digital display colors, plus 12 factory preset color themes for quick customization.
Key Features
- Styled after original 1970-78 Camaro instrumentation for a factory appearance
- Fits stock or reproduction instrument bezels (bezel not included); also fits 1979-81 bezels
- Dual high-definition TFT message centers, fully configurable
- Full RGB LED backlighting with over 30 user-selectable colors and 12 factory preset themes
- Independent daytime and nighttime brightness control via headlight switch activation
- Pushbutton rocker switch control for calibration and menu navigation
- Configurable through included pushbutton switch or free mobile app (Android and Apple)
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and more
Specifications
- Part Number: RTX-70C-CAM-X
- Speedometer: 0-150 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with analog gauges and dual TFT message centers
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assortment of mounting bushings
Notes
- Instrument bezel is not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control, sold separately
- Speedometer calibration is not required when used with GPS-50-2
