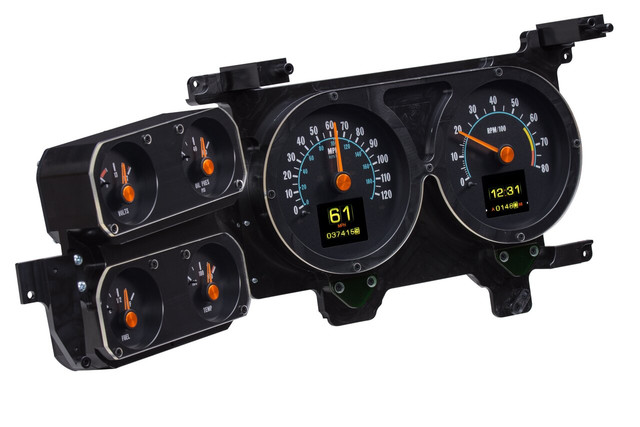

The Dakota Digital RTX-76C-PU-X RTX Instrument System is designed specifically for 1976-78 Chevy Trucks, paying tribute to the classic square-body gauge design while bringing modern electronics and late-model features into the mix. This bolt-in system installs into your stock or aftermarket front bezel (bezel not included) and uses OEM or reproduction style bezels for a factory-correct appearance.
Twin TFT message centers replicate the look of a vintage tumbler odometer while offering expanded auxiliary readings to keep the driver informed. Factory turn signal indicators are converted to modern LED lighting, and the OEM gear-indicator can be retained or displayed digitally with the addition of an optional GSS-3000 sensor.
CNC-machined housings are filled with in-house designed electronics, and the high-definition TFT message centers can be fully configured to display a wide range of information. A central control box simplifies installation and setup, continuing Dakota Digital's commitment to easy-to-install, feature-rich instrumentation.
Key Features
- Retains the classic 1976-78 Chevy Truck square-body gauge face design with modern LED backlighting
- Twin TFT message centers with vintage tumbler odometer appearance and expandable auxiliary readouts
- Factory turn signal indicators converted to modern LED lighting
- OEM gear-indicator retained, or displayed digitally with optional GSS-3000 sensor

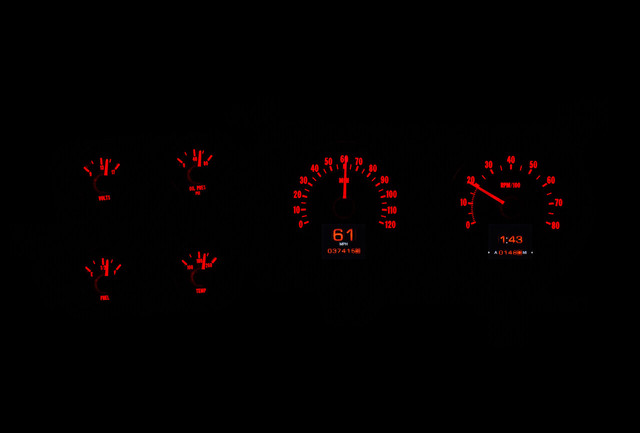

- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton control via included two-sided rocker switch for setup and menu navigation
- Configurable through free mobile app for Android and Apple devices with real-time gauge readouts
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
Specifications
- Part Number: RTX-76C-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Built-in Indicators

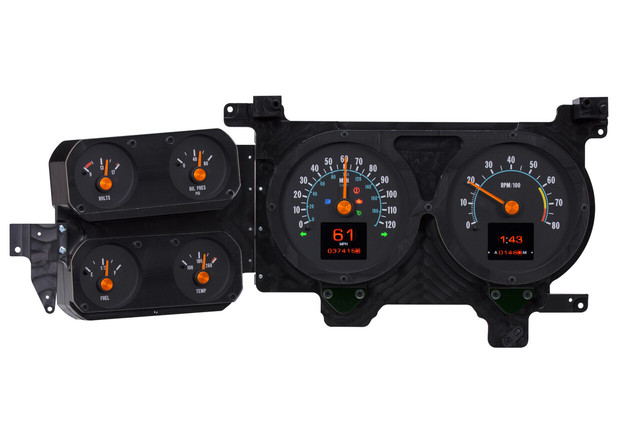

- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (optional GSS-3000 sensor required)
- 4 x 4 (when vehicle is equipped)
- Wait to Start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Each analog gauge sweep contains a red LED indicator for warning conditions (except speedometer)
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replaces GM style speedometer cables (requires approximately 5" clearance; Part # 130011 sold separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with CNC machined housing and TFT message centers
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assortment of mounting bushings
Notes
- Front bezel is not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for digital gear position display
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Part # 130011 available separately for speed sensor relocation when additional clearance is required
