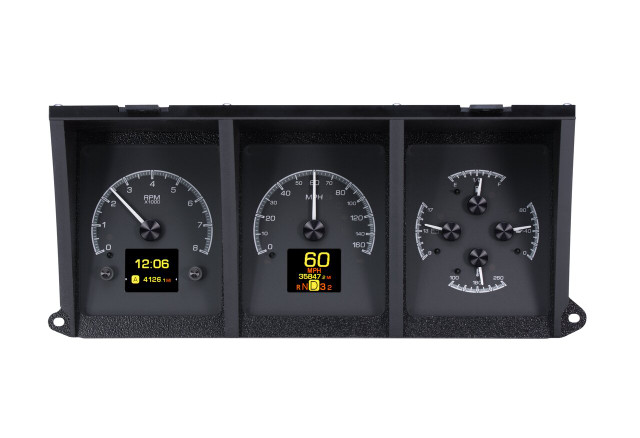

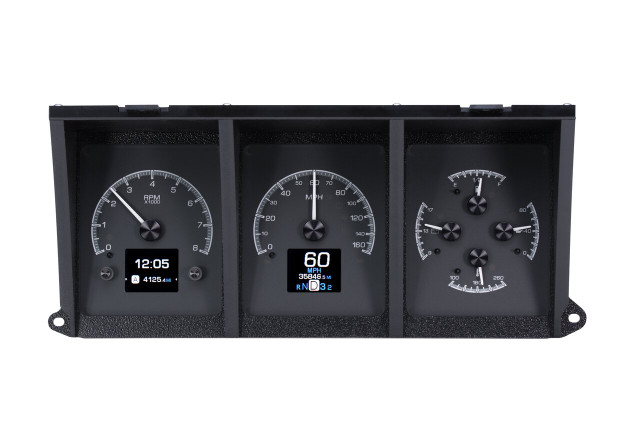

The Dakota Digital HDX-73F-PU-K is a direct-fit instrument system designed for 1973-79 Ford dentside pickups, bringing modern electronic gauge technology to a classic triple-square instrument cluster. This system features black alloy gauge-face styling with fully customizable indicator and lighting colors, allowing the vintage truck to gain 21st century functionality without sacrificing its original look.
Supplied sensors and available expansion modules allow the HDX system to mate with the drivetrain of your choice, while the full-color TFT message center provides additional trip, performance, and diagnostic information at a glance. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. This system does not fit the E-Van.
Each needle hub is black nickel plated spun-aluminum to match the system's buttons. With the included central control box, installation is simplified through vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features
- Black alloy gauge-face styling with independently selectable illumination colors for needles, gauge sweeps, and message center
- Full-color TFT digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Dead-fronted indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options with 12 factory preset color themes, plus independent daytime and nighttime brightness control
- Onboard capacitive-touch pushbuttons with LED backlighting, plus optional remote-mounted switches and Bluetooth app control
- Black nickel plated spun-aluminum needle hubs to match the control buttons
- Central control box simplifies installation with vehicle-harness sourced signals and solid-state sending units
Specifications
- Part Number: HDX-73F-PU-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires the optional GSS-3000 sensor
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
