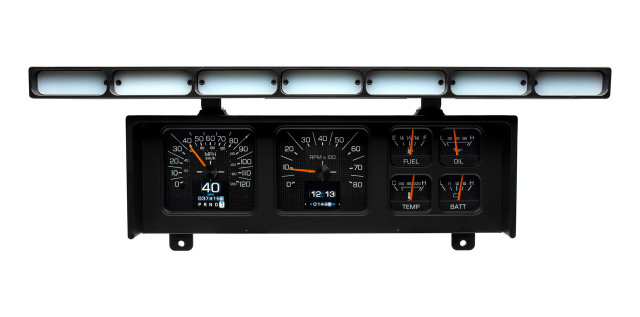

The Dakota Digital RTX-80F-PU-X is a direct-fit RTX Series instrument system designed for 1980-86 Ford "bull nose" pickups and Broncos. Built to retain the stock appearance of the original dash while adding modern capability, the RTX series incorporates OEM-style design elements in its layout, face styling, and indicators so the system looks right at home in a classic Ford interior.

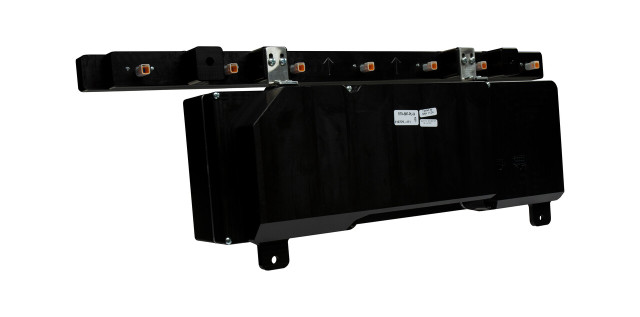

Each gauge housing is CNC machined and filled with electronics engineered and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, while full LED backlighting delivers sharp, easy-to-read graphics day or night. A central control box simplifies installation and setup.

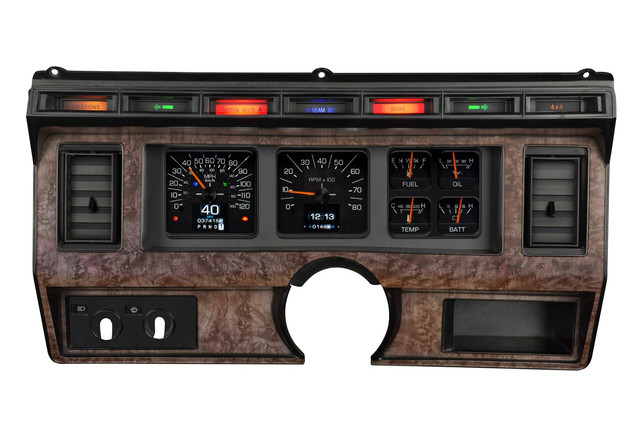

This system uses the OEM bezel; the bezel itself is not included and is shown for visual/presentation purposes only.
Key Features
- Analog gauges include speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- High-definition TFT digital message center with standard displays and performance meters
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes plus full custom color zone selection

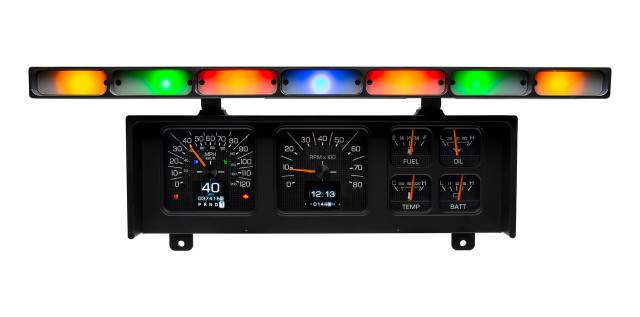

- Full RGB LED backlighting with independent daytime and nighttime themes
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two user-programmable auxiliary inputs
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
- Pushbutton rocker switch control for driving mode and setup menu navigation
- Configurable through a free mobile app for Android and Apple devices
- Calibration of speedometer and fuel level completed via pushbuttons and a short test drive
Specifications
- Part Number: RTX-80F-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with CNC machined housing and TFT message center
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Bezel not included; system uses the OEM bezel, shown for representation purposes only
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear position indicator requires the optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 may be used to eliminate the need for speedometer calibration
