Description
The Dakota Digital RTX-87F-MUS-X Instrument System is a direct-fit replacement designed for 1987-89 Ford Mustang Fox Body applications, retaining the stock appearance of the factory cluster while delivering modern electronics behind the scenes. Whether your Mustang still runs a stock 5.0 Liter or has been upgraded with a modern powerplant, the RTX system is compatible with any combination.
Dakota Digital's RTX series focuses on preserving the OEM look with correct layout, face styling, and indicators, so a casual glance may mistake it for original equipment. Once the LED backlighting is activated in your chosen color scheme, the technology becomes apparent. CNC machined housings are filled with in-house designed electronics, and the high-definition TFT message center can be configured to display a wide range of information. A central control box simplifies installation and setup.
This system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features

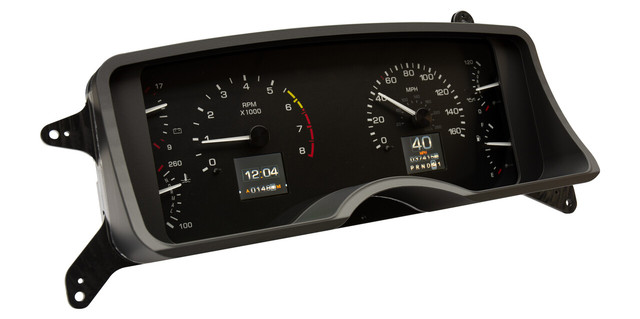

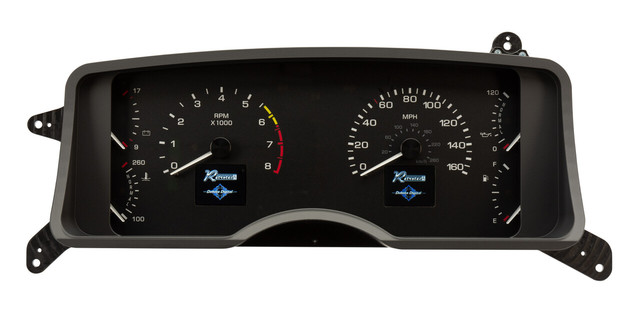

- Nearly identical appearance to the factory Mustang instrument cluster
- Analog gauges include Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, and Voltmeter
- High-definition TFT digital message center with Odometer, Dual (A/B) Trip Meter, 12-hour Clock, and Estimated Range/Miles to Empty
- Built-in Performance Meters including 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall

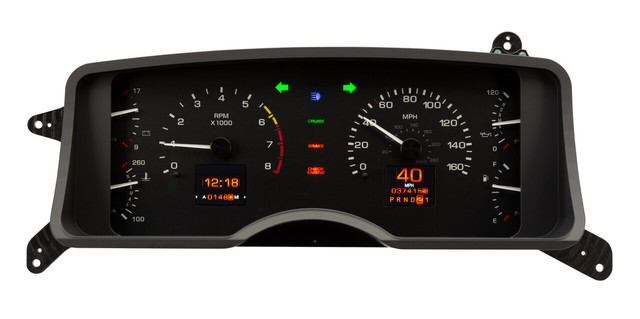

- Built-in indicators for Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, and Wait to Start, plus two user-programmable auxiliary indicators
- Each analog gauge sweep contains a red LED indicator for warning conditions (except speedometer)
- Over 30 user-selectable color options for needle color, sweep color, and TFT display color
- 12 factory preset color themes or fully customizable color zones
- Full RGB LED backlighting with independent daytime and nighttime themes
- Daytime and nighttime brightness control through the RTX setup menu, toggled by the headlight switch
- LED-lit onboard capacitive touch pushbuttons for quick access to all functions
- Full system configuration available through a free Bluetooth app for Android and Apple devices

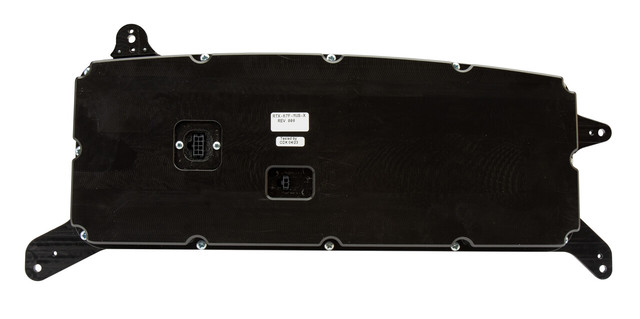

- Central control box simplifies installation and calibration
Specifications
- Part Number: RTX-87F-MUS-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing Ford and/or GM style speedometer cables with a 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 sold separately allows pulse generator relocation when additional clearance is needed)
- Bushing kit including 1/8" to 1/4", 3/8", and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
