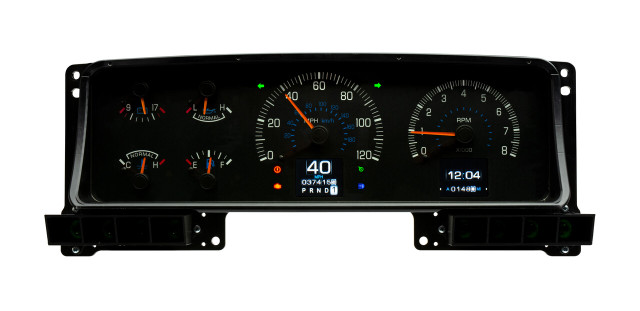

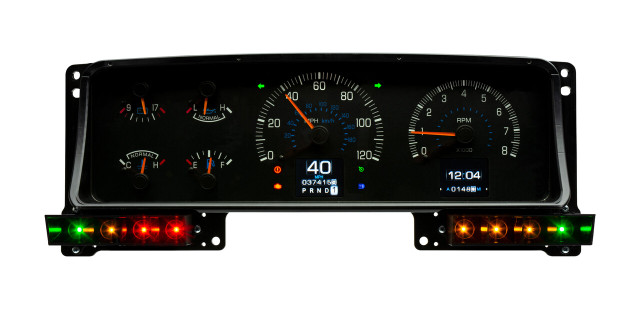

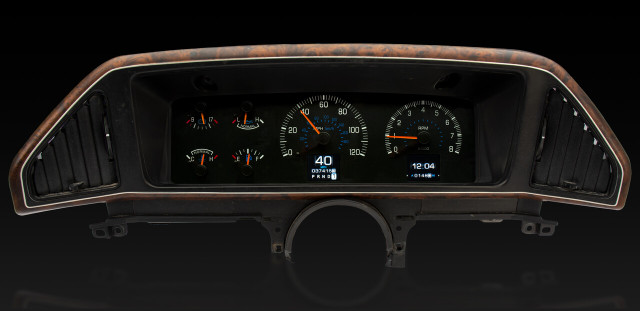

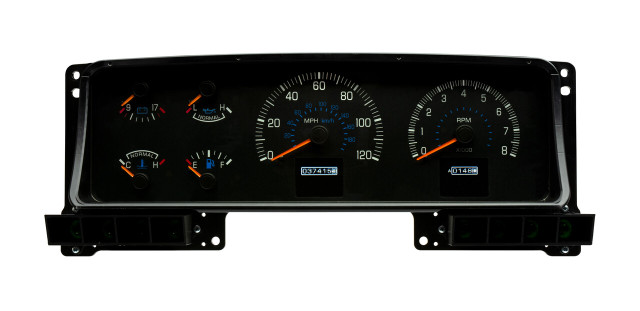

The Dakota Digital RTX-87F-PU-X is a direct-fit RTX instrument system designed for 1987-91 Ford F-Series trucks and also fits 1987-91 Bronco (does not fit Bronco II). This system bolts in six analog gauges with twin TFT message centers and a row of LED indicators to update the factory warning lamps, all while utilizing the existing front bezel for a seamless upgrade.
Compatible with stock drivetrains or a custom conversion, the speedometer can be used in mechanical applications or with a pre-existing VSS. The RTX series retains the stock appearance of the original instrumentation while incorporating late-model features, with OEM-inspired layout, face styling, and indicators. CNC machined housings are filled with in-house designed electronics, and the high-definition TFT message centers can be configured to display a wide range of information.
A central control box simplifies installation and setup, and the system supports full RGB LED backlighting with extensive color and theme customization.
Key Features
- Six analog gauges: Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, and Voltmeter
- Twin high-definition TFT digital message centers
- Uses existing OEM front bezel for direct-fit installation (bezel not included)
- Standard displays include odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, and two user-programmable auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable colors for needle, sweep, and TFT display, plus 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, controlled via the RTX setup menu or optional DIM-1 accessory
- Pushbutton rocker switch control with button-press feedback via TFT display or included buzzer
- Full configuration and real-time diagnostics available through free mobile app (Android and Apple compatible) via Bluetooth
Specifications
- Part Number: RTX-87F-PU-X
- Vehicle Application: 1987-91 Ford F-Series Pickup and 1987-91 Bronco (does not fit Bronco II)
- Speedometer Range: 0-120 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with block-off plug for stock speedometer cable output, uses stock Ford speed sensor
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with analog gauges and TFT message centers
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator and block-off plug
- Bushing kit
Notes
- Front bezel is not included; system uses the existing OEM bezel
- Gear position indicator requires optional GSS-3000 sensor
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
