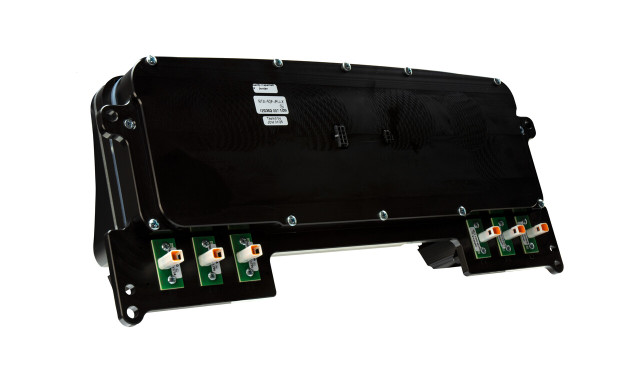

The 1992-96 Ford Truck/Bronco RTX Instrument System brings Dakota Digital's latest instrumentation technology to these classic, boxy Ford pickups and Broncos without sacrificing their original equipment appearance. Every effort has been put into retaining OEM design elements in layout, face styling, and indicators, so a casual glance might mistake this system for factory equipment. Once the switch is hit and the LED backlighting comes on in your favorite color scheme, however, all doubts will be removed.
Built from scratch with CNC machined housings and electronics designed and engineered in-house, this RTX system features high-definition TFT message centers that can be fully configured to display a wide range of vehicle information. As with other Dakota Digital systems, the RTX series uses a central control box to simplify installation and setup.
This system uses the OEM bezel, which is not included. Customers retaining the stock ECU and transmission will need to keep the factory PSOM removed from the OEM gauge cluster; details are included in the installation manual.
Key Features
- Analog gauges including speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter with OEM-style faces
- High-definition TFT digital message center with standard displays: odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two programmable auxiliary inputs
- Each analog gauge sweep includes a red LED indicator for quick notice of a warning condition (except speedometer)
- Over 30 user-selectable color options for independently setting needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully customizable color zones for a personalized look
- Full LED/RGB backlighting with separate daytime and nighttime themes, controllable through the RTX setup menu
- Pushbutton rocker switch control for calibration and menu navigation, with button-press feedback via the TFT message center or included buzzer
- Compatible with the free Dakota Digital mobile app (Android and Apple) for configuration, real-time gauge readouts, and diagnostics
Specifications
- Part Number: RTX-92F-PU-X
- Speedometer Range: 0-115 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator that replaces Ford and/or GM style speedometer cables, with 10 ft harness (requires approximately 5" of clearance between the cable drive output and any obstruction; part number 130011 available separately for relocating the pulse generator when additional clearance is needed)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread applications
Notes
- OEM bezel required for installation and is not included with this system
- Gear position indicator requires optional GSS-3000 sensor
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
- Speedometer calibration can be bypassed when used with a GPS-50-2 unit
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed for your application
