Description
Description

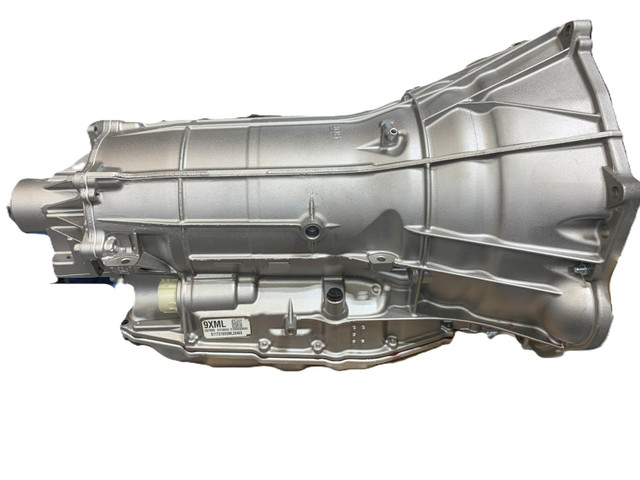

8L90E Level 3 is designed as an upgraded option for a factory equipped application. This can be used as a retrofit option, but the use of a standalone transmission controller will need to be used. If you are bolting a supercharger onto your LT-based engine, the strengthened internals of an
Performance Specifications
- 8l90e 2wd level 4 transmission
- Rated up to: 600HP at the crankshaft
- Rated up to: 550 Ft-lbs of torque at the crankshaft
- Stall Range: 2200-2800 RPM stall
Build Details
- are required to handle the immediate, aggressive power delivery.
- GM 8L90E Level 4 designed for Gen V LS/LT engines & 2wd applications
- Includes a custom billet Yank Performance torque converter
- GM 8L90E
Gear Ratios
- 1st: 4.560
- 2nd: 2.970
- 3rd: 2.080
- 4th: 1.690
- 5th: 1.270
- 6th: 1.000
Dimensions
- Measurements are taken from mounting surface where trans meets engine block to the tip of the tailshaft
- Total Length: 29"
- Distance to trans mount center: 25.365"
