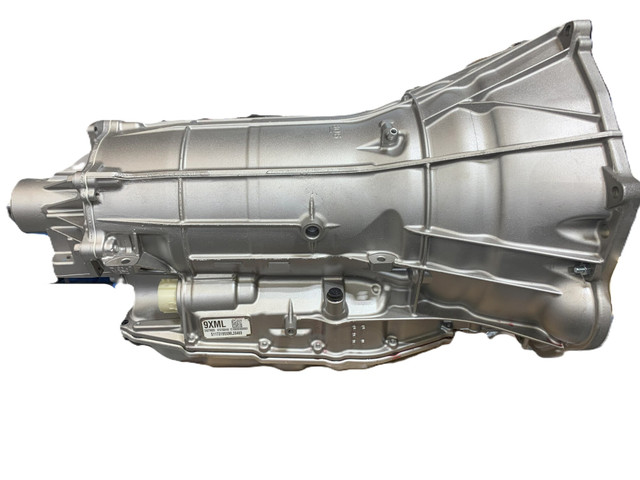

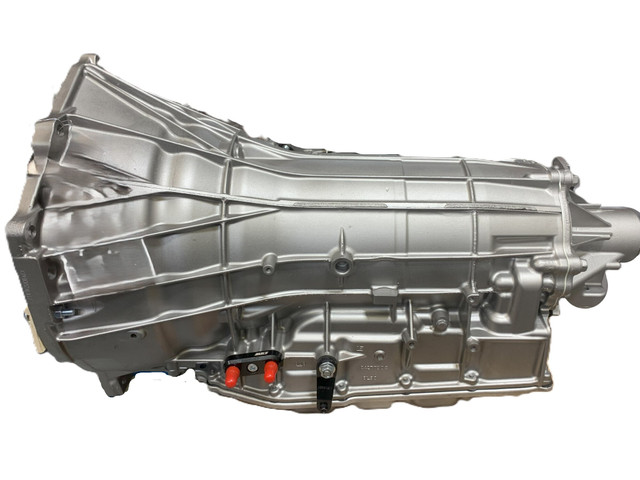

8L90E Level 4 is designed as an upgraded option for a factory equipped application. This can be used as a retrofit option, but the use of a standalone transmission controller will need to be used. Find the right build for your project in our
Performance Specifications
- 8l90e 4x4 level 3 transmission
- Rated up to: 700HP at the crankshaft
- Rated up to: 650 Ft-lbs of torque at the crankshaft
- Stall Range: 2400-3000 RPM stall
Build Details
- 8L90E 2WD transmission
- section. Builders transitioning their high-horsepower powertrain into an all-wheel-drive or truck chassis will want to spec an
- to properly mate with the transfer case.
- GM 8L90E Level 4 designed for Gen V LS/LT engines & 2wd applications
- Includes a custom billet Yank Performance torque converter
- GM 8L90E
Gear Ratios
- 1st: 4.560
- 2nd: 2.970
- 3rd: 2.080
- 4th: 1.690
- 5th: 1.270
- 6th: 1.000
Dimensions
- Measurements are taken from mounting surface where trans meets engine block to the tip of the tailshaft
- Total Length: 29"
- Distance to trans mount center: 25.365"
