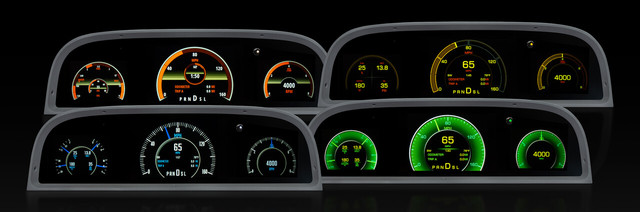

The Dakota Digital Grafix Series GRFX-60C-PU brings a fully customizable digital instrument system to 1960-63 Chevy pickups. Designed to set your dash apart, this system allows the user to select from a variety of graphic themes, with each gauge element further personalized with unique display colors and warning modes. Each gauge location can be configured as an Analog, Digital, or Bar-graph style readout, shown singly, grouped in pairs, or reconfigured entirely to display different information.
The Grafix system introduces an integrated reverse backup video display, showing camera footage right within the instrument cluster using the system's largest onboard display (Dakota Digital backup cameras available separately). Onboard GPS technology enables automatic, no-touch speedometer calibration regardless of tire size or gearing, while built-in Bluetooth connects wirelessly to the Dakota Digital App for configuration, calibration, customization, and real-time diagnostics. A USB access port allows for field updates and future feature enhancements.
An external control module keeps wiring tidy and minimizes routing to the gauge cluster. The system includes a complete sensor package and an integrated G-force meter for real-time display of driving dynamics. Engineered and produced in Sioux Falls, South Dakota, this Dakota Digital system carries a Limited Lifetime Warranty. The bezel is not included; the system is designed to use an OEM or reproduction style bezel.
Key Features
- Fully customizable graphic themes with Analog, Digital, or Bar-graph display styles per gauge location
- Integrated reverse backup video display shown within the instrument cluster (camera sold separately)
- Onboard GPS technology for no-touch, automatic speedometer calibration
- Built-in Bluetooth connectivity with the Dakota Digital App for setup, calibration, and real-time data
- USB port for field updates and future graphic theme imports
- Integrated G-force meter with graphical display
- Over 30 user-selectable colors for needle, sweep, and digital display elements
- Internal photo sensor for automatic brightness adjustment with auto high-contrast and auto night modes

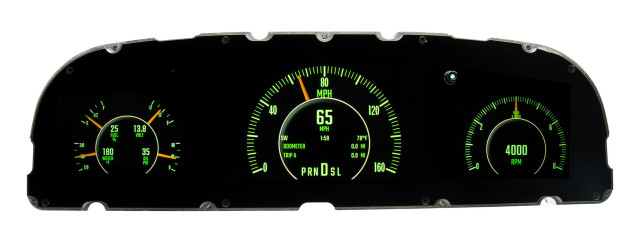

- 4 factory preset gauge themes (Standard, Performance, Modern, Era) with 12 color schemes
- External control module for simplified, organized wiring
- Pushbutton rocker switch control plus full mobile app configuration (Android and Apple)
Specifications
- Part Number: GRFX-60C-PU
- Fitment: 1960-63 Chevy Pickup
- Speedometer: Simulated needle range up to 200 MPH/320 km/h; digital numeric range up to 255 MPH/410 km/h
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi; digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F/130°C; digital numeric range up to 300°F/130°C
- Fuel Level: Simulated needle range E, 1/4, 1/2, 3/4, F; digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range up to 18 VDC
- Clock: 12-hour Analog/Digital clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (relocation part #130011 sold separately when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Digital Message Centers
- Odometer (one-time user settable, million mile), dual A/B trip meter, digital 12-hour clock, estimated range/miles to empty, and hour meter
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall, and G-Meter
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two user-programmable auxiliary inputs
- Optional gear position indicator available with GSS-3000 sensor (sold separately)
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Backup camera, GSS-3000 gear position sensor, optional 0-300 psi oil pressure sensor, DIM-1 dimming knob, and sensor relocation part #130011 are available separately
