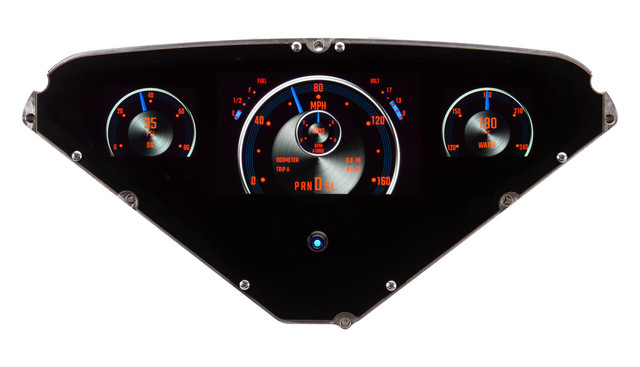

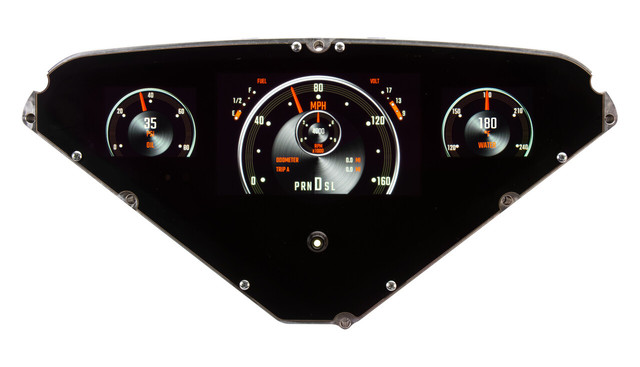

The Dakota Digital GRFX-55C-PU Grafix Series instrument system drops into the OEM front gauge bezel to bring your 1955-59 Chevy Truck into the modern age. Compatible with everything from the original factory engine to the latest LT power, this kit delivers detailed monitoring of your under-hood investment while offering the latest in display technology and customization.
The Grafix Series allows the user to customize nearly every aspect of the instrument system. Choose from a variety of graphic themes, personalize each element with unique display colors and warning modes, and configure each gauge location as Analog, Digital, or Bar-graph. Displays can show readings singly, grouped in pairs, or reconfigured entirely to suit your preference.
This system also integrates a reverse backup video display directly within the instrument cluster, onboard GPS technology for automatic no-touch speedometer calibration, and built-in Bluetooth connectivity for wireless configuration, calibration, and troubleshooting via the Dakota Digital App. A USB access port allows for field updates and future feature enhancements. An external control module keeps wiring tidy and organized, separate from the gauge cluster itself. Engineered and produced in Sioux Falls, South Dakota, this system carries a Limited Lifetime Warranty.
Key Features
- Drops into the OEM front gauge bezel for a factory-style appearance
- Selectable Analog, Digital, or Bar-graph readout styles for each gauge location
- Multiple factory graphic themes with over 30 user-selectable color options
- Integrated reverse backup video display within the instrument cluster (camera sold separately)
- Onboard GPS technology for automatic, no-touch speedometer calibration
- Built-in Bluetooth connectivity with the Dakota Digital App for setup, calibration, and diagnostics
- USB access port for field updates and future feature releases
- Integrated G-force meter with graphical real-time display
- Fully backlit billet-aluminum rotary encoder control knob
- External control module for simplified, organized wiring
- Internal photo sensor with Auto High Contrast and Auto Night Mode
- Dual A/B trip meter, digital clock, estimated range, and hour meter
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall, and G-meter
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and more
Specifications
- Part Number: GRFX-55C-PU
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle range E to F, digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range up to 18 VDC
- Clock: 12-hour analog/digital clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
- Cable-Driven Speed Sensor/Generator: Replaces GM-style speedometer cables, includes 10 ft harness (requires approximately 5" clearance; relocation part #130011 sold separately)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- Grafix Series instrument cluster
- External control module
- Water temperature, oil pressure, and speedometer pulse generator sensors with full-length harnesses
- Bushing assortment
- Two-sided pushbutton rocker switch
- Installation instructions
Notes
- Bezel not included; system uses an OEM or reproduction-style bezel
- Backup camera available separately for use with the integrated video display feature
- Optional accessories include SEN-03-9 (0-300 psi oil pressure sensor), GSS-3000 (gear position sensor), DIM-1 (dimming knob), GPS-50-2 (GPS speed sensor), and part #130011 (pulse generator relocation kit)
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
