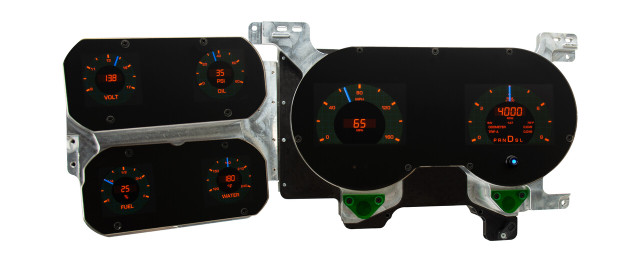

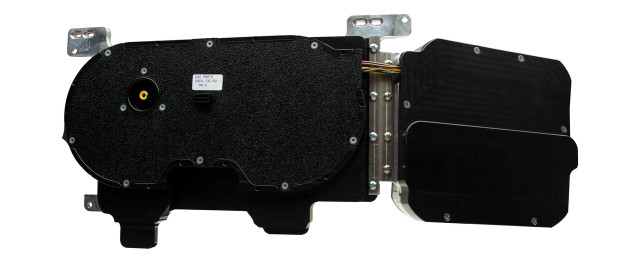

The Dakota Digital GRFX-73C-PU Grafix Series instrument system is a direct bolt-in upgrade for 1973-87 Chevy Trucks, delivering one of the boldest interior transformations available for these classic trucks. Designed to integrate with any drivetrain, this system combines modern features and technology with extensive customization options.
The Grafix Series allows users to customize nearly every aspect of the instrument display. A variety of graphic themes can be selected, with each element further personalized with unique display colors and warning modes. Each gauge location can be configured as Analog, Digital, or Bar-graph style, and displays can show readings individually, in grouped pairs, or reconfigured entirely to show different data.
The system also introduces reverse backup video display integration, onboard GPS-based automatic speedometer calibration, built-in Bluetooth connectivity with the Dakota Digital App, a USB port for field updates, and an integrated G-force meter. An external control module keeps wiring organized for a clean installation. Engineered and produced in Sioux Falls, South Dakota, this system carries a Limited Lifetime Warranty.
Key Features
- Direct bolt-in fit for 1973-87 Chevy Trucks
- Selectable graphic themes with customizable display colors and warning modes
- Each gauge location configurable as Analog, Digital, or Bar-graph style readout
- Reverse backup video display shown within the largest onboard display (camera sold separately)
- Onboard GPS technology for automatic, no-touch speedometer calibration
- Built-in Bluetooth for wireless configuration, calibration and troubleshooting via the Dakota Digital App
- USB access port for field updates and future feature enhancements
- Integrated G-force meter with graphical real-time display
- External control module for simplified wiring and a clean installation
- Over 30 user-selectable colors for needle, sweep and digital alphanumeric displays
- Internal photo sensor for automatic brightness adjustment, with Auto High Contrast and Auto Night modes
- 4 factory preset gauge themes with 12 color schemes, or full custom color zone selection
Specifications
- Part Number: GRFX-73C-PU
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle range shows E, 1/4, 1/2, 3/4, F; digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range up to 18 VDC
- Clock: 12-hour analog/digital clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays
- Odometer (one-time user settable, Million Mile)
- Dual (A/B) trip meter (0-9,999.9)
- Digital clock (12-hour)
- Estimated range/miles to empty
- Hour meter
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed and high RPM recall
- G-Meter (G-Force)
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/on & engaged, when vehicle equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and Wait to Start (when vehicle equipped)
- Two auxiliary input indicators with user-programmable labels
- Warning indicator light built into each analog gauge sweep (except speedometer)
Included Sensors
- Water Temperature: 1/8" NPT, ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
- Cable-driven speed sensor/generator replacing GM-style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; relocation part #130011 sold separately when additional clearance is needed)
- Bushing set including 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Calibration and Use
- Two-sided pushbutton rocker switch included for setup and menu navigation
- Compatible with the Dakota Digital mobile app (Android and Apple) for configuration and real-time gauge readouts
- Speedometer and fuel level calibration completed via pushbutton switch or Bluetooth app and a short test drive (speedometer calibration not required when optional GPS-50-2 is used)
Notes
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed for the application
- Backup camera, GSS-3000 gear position sensor, DIM-1 dimming knob, SEN-03-9 oil pressure sensor, GPS-50-2 module, and part #130011 relocation adaptor are optional accessories sold separately
