The Dakota Digital GRFX-67C-PU Grafix Series instrument system is designed to fill the factory gauge bezel of a 1967-72 Chevy pickup with a fully customizable digital gauge display. Compatible with any original engine or a modern fuel-injected swap, this system delivers detailed monitoring of your vehicle along with the latest in display technology and personalization.

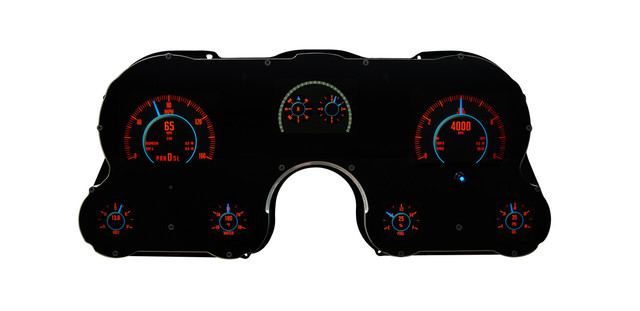

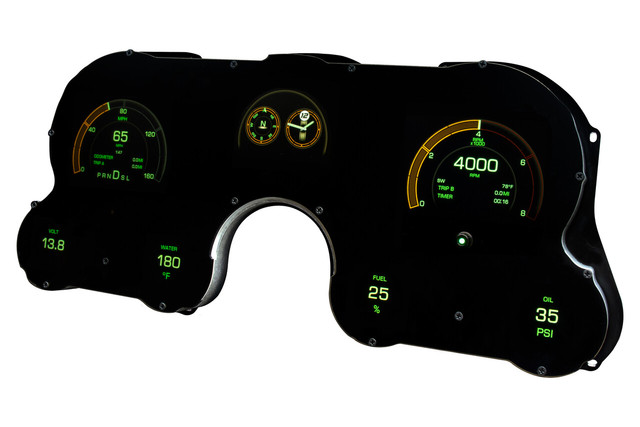

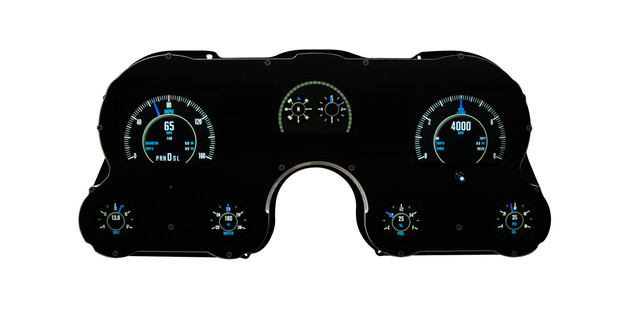

The Grafix Series allows nearly every aspect of the instrument display to be customized, including graphic themes, display colors, and warning modes. Each gauge location can be configured as Analog, Digital, or Bar-graph style, and readouts can be displayed singly, paired, or reconfigured entirely to suit the driver's preference. The system also features an integrated reverse backup video display, onboard GPS for automatic speedometer calibration without the need for manual input, and built-in Bluetooth connectivity for wireless configuration and monitoring through the Dakota Digital App.
An external control module keeps wiring organized and out of the gauge cluster, while a complete sensor package is included to get the system up and running. Like all Dakota Digital instrument systems, the GRFX-67C-PU is engineered and produced in Sioux Falls, South Dakota, and is backed by a Limited Lifetime Warranty.
Key Features
- Direct fit for the 1967-72 Chevy pickup factory instrument bezel
- Selectable Analog, Digital, or Bar-graph display styles for each gauge location
- Multiple graphic themes with over 30 user-selectable colors for needle, sweep, and digital display
- Integrated reverse backup video display (camera sold separately)
- Onboard GPS technology for automatic, no-touch speedometer calibration
- Built-in Bluetooth connectivity with companion smartphone/tablet app for setup, calibration, and real-time data
- USB port for field updates and future feature releases
- Integrated G-force meter with graphical display
- External control module for simplified, tidy wiring
- Internal photo sensor for automatic brightness adjustment with auto high-contrast and auto night modes
Specifications
- Part Number: GRFX-67C-PU
- Vehicle Application: 1967-72 Chevy Pickup
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional 0-300 psi sensor
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle range E to F, digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range 0-18 VDC
- Clock: 12-hour analog/digital clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM-style speedometer cables, includes 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction; relocation part 130011 available separately if needed)
- Bushing set: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- GRFX instrument cluster with external control module
- Two-sided pushbutton rocker switch for setup and operation
- Complete sensor package with full-length wiring harnesses
- Assorted sensor bushings
- Installation instructions
Notes
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Dimming knob (DIM-1) available separately for manual brightness control
- Backup camera available separately with full-length wire harness and universal mounting
- Replacement bezel available separately (ICM-67C-PU)
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
