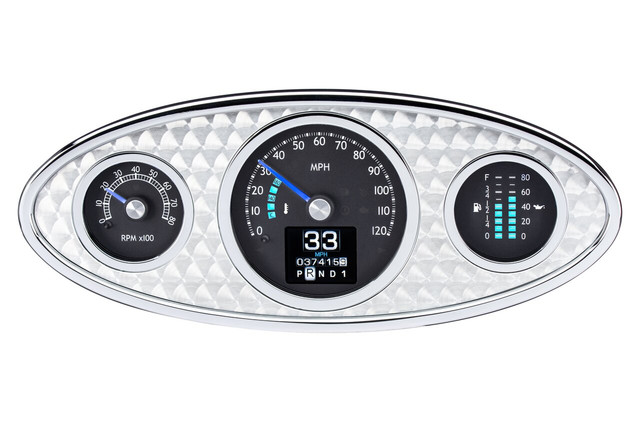

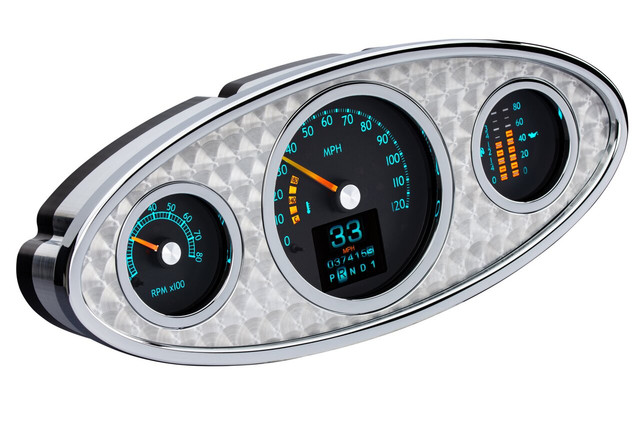

The Dakota Digital RTX-32F-X is a complete electronic instrument system engineered specifically for the 1932 Ford Car. Combining analog gauge movements, digital bar graph displays, and a built-in TFT message center, this system delivers a fully customizable blend of classic and modern gauge technology in a direct-fit package for the 1932 Ford.
Each gauge features full LED backlighting with over 30 user-selectable color options, allowing independent control of needle color, sweep color, and digital display color. Twelve factory preset color themes are available, or users can create their own custom color zones for a truly personalized look, with separate daytime and nighttime lighting themes.
The system is configured and operated using an included two-sided pushbutton rocker switch, or through the available Dakota Digital mobile app for Android and Apple devices, which also allows real-time gauge readouts for diagnostic use or as a secondary display.
Key Features
- Analog speedometer and fuel level gauge
- Digital bar graph tachometer, oil pressure, and water temperature gauges
- Built-in digital message center with voltmeter, odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, and wait-to-start
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Full RGB LED backlighting with over 30 user-selectable colors and 12 factory preset themes
- Daytime and nighttime brightness control tied to the headlight switch
- Configurable via included pushbutton rocker switch or Dakota Digital mobile app
Specifications
- Part Number: RTX-32F-X
- Speedometer Range: 0-120 MPH
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Voltmeter Range: 9-17VDC
- Odometer: One-time user settable, million mile
- Trip Meter: Dual (A/B), 0-9,999.9
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing Ford and/or GM style speedometer cables, with 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Cable driven speed sensor requires approximately 5" clearance between the cable drive output and any obstruction; part number 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed
- On-the-fly rotary dimmer control can be added with the optional DIM-1 accessory (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- Speedometer and fuel level calibration are performed via the pushbutton switch or Bluetooth app and a short test drive, unless an optional GPS-50-2 is used, which eliminates the need for speedometer calibration
