Description

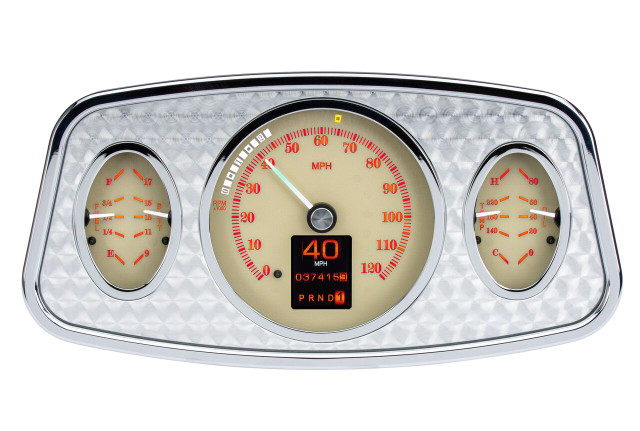

The RTX-33F-X brings the RTX series from Dakota Digital to the 1933-34 Ford car, blending the look of fine jewelry with modern instrumentation technology. Brushed instrument faces are set within a chrome bezel featuring an engine-turned aluminum insert, while engine RPM is displayed through an LED bar graph that wraps around the outside of the speedometer. A full-color TFT message center allows additional information to be displayed beyond the standard six functions. The billet aluminum housing is designed to match the stamped raised section in the factory 1933-34 Ford car dash; cutting of the dash is required for installation.
The RTX series retains a stock appearance without sacrificing the late-model features enthusiasts want, incorporating OEM design elements in layout, face styling and indicators. A casual glance may mistake it for original equipment until the LED backlighting is activated in the color scheme of your choice.
Each CNC-machined housing is filled with electronics designed and built in-house by Dakota Digital. The high-definition TFT message center can be configured to display a wide range of information, and the system utilizes a central control box to simplify installation and setup.
Key Features
- Brushed instrument faces with chrome bezel and engine-turned aluminum insert
- LED bar graph tachometer wraps around the outside of the speedometer
- Full-color TFT message center displays additional information beyond standard functions

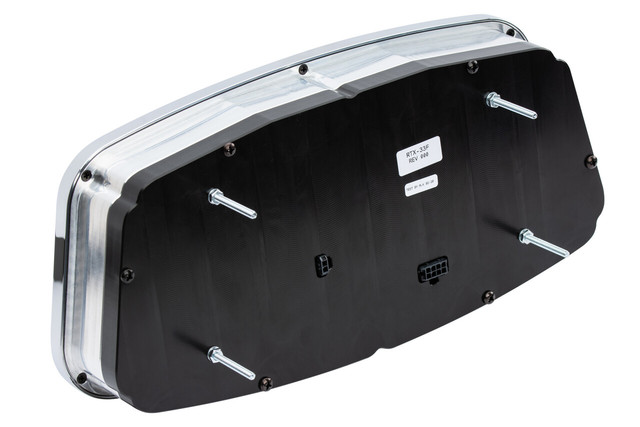

- Billet aluminum housing designed to match the 1933-34 Ford car dash's stamped raised section
- Over 30 user-selectable color options for independently adjusting needle, sweep and digital TFT display colors
- 12 factory preset color themes, or fully customizable color zones

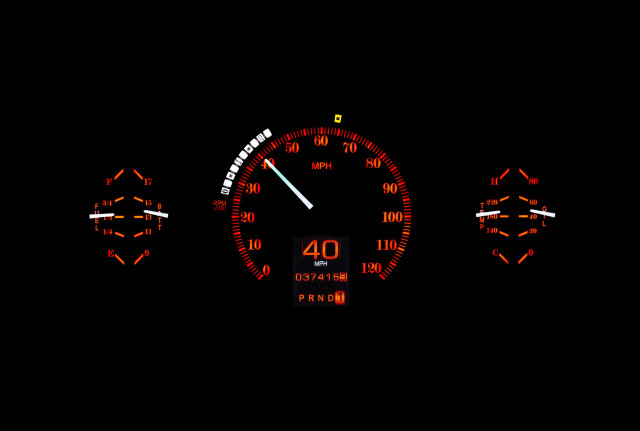

- Full LED/RGB backlighting with separate daytime and nighttime themes
- Pushbutton rocker switch control for setup and driving mode functions
- Configurable through free mobile app for Android and Apple devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
Specifications
- Part Number: RTX-33F-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM (digital bar graph)
- Control Box Dimensions: 5.5" x 3.5" x 1"
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and wait-to-start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED indicator within each analog gauge sweep for quick notice of a warning condition (except speedometer)
Included Sensors
- Water temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable driven speed sensor/generator replacing Ford and/or GM style speedometer cables, with 10 ft harness (approximately 5" clearance required between cable drive output and any obstruction; part 130011 available separately for relocating the pulse generator when additional clearance is needed)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Kit Includes
- RTX instrument cluster with billet aluminum housing and chrome bezel
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- NPT and metric thread bushings
Notes
- Cutting of the factory 1933-34 Ford car dash is required for installation
- Gear position indicator requires optional GSS-3000 sensor, sold separately
- DIM-1 rotary dimmer control available as a common accessory for on-the-fly brightness adjustment
- Part 130011, for relocating the pulse generator, is sold separately
- System can also be configured via the free Dakota Digital mobile app for Android and Apple devices
