Description

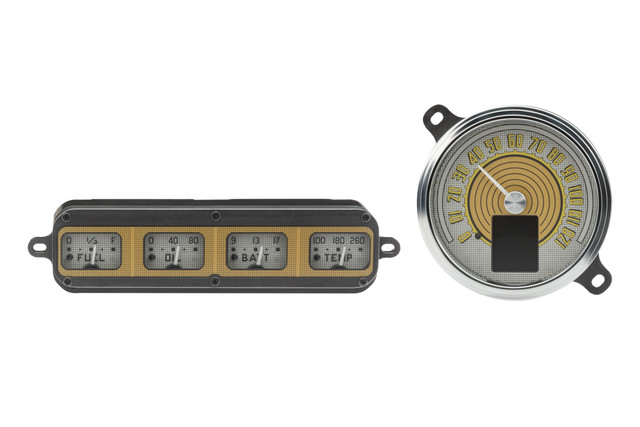

The Dakota Digital RTX-42F-X Instrument System brings modern electronics to your 1942-48 Ford or Mercury car while retaining the stock, OEM-styled gauge appearance you love. Designed with CNC-machined housings and in-house engineered electronics, the RTX series blends classic analog gauge faces with a high-definition TFT message center, giving you accurate, late-model performance without sacrificing the original look.

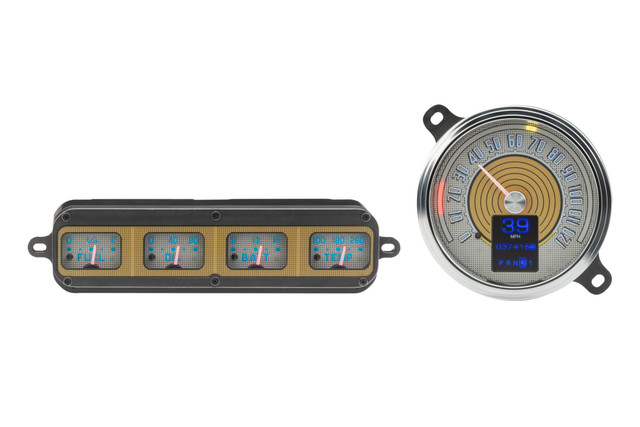

A casual glance may dismiss this system as factory original, but once the LED backlighting is activated in your chosen color scheme, the advanced capability becomes apparent. A central control box simplifies installation and setup, while the system's digital message centers can be configured to display a wide range of vehicle information.
Due to the unique, OEM-styled gauge face color used on the '42-48 application, some color shift of the user-selectable RGB backlighting will occur, which reduces the available color selections and gives the pure white option an incandescent warm color temperature.
Key Features
- Analog gauges styled after original equipment for a factory appearance
- High-definition TFT digital message center for configurable readouts
- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- Pushbutton rocker switch control for programming and operation
- Configurable via free mobile app for Android and Apple devices with real-time gauge readouts
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, and more
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-42F-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM
- Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall

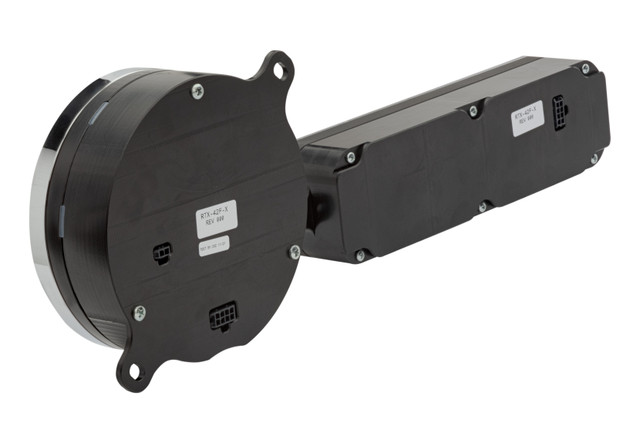

- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocation when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed to suit your application
- Gear Position indicator requires the optional GSS-3000 sensor (sold separately)
- For on-the-fly rotary brightness control, the DIM-1 accessory is available separately
- Speedometer calibration is not required when used with the optional GPS-50-2 (sold separately)
- Includes a two-sided pushbutton rocker switch for programming and operation
