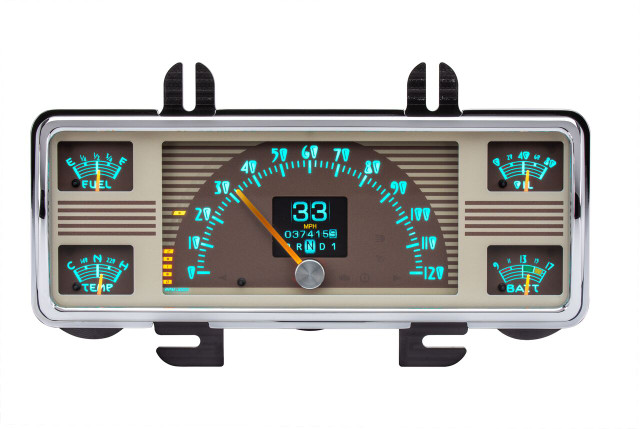

The Dakota Digital RTX-40F-X RTX Instrument System brings the iconic 1940 Ford car dashboard to life with a feature-rich, OEM-styled gauge package. The kit includes a chrome plated, machined bezel for a finished look that fits the stock dash opening in 1940 Ford cars.
As part of Dakota Digital's RTX series, this system retains the classic instrument layout, face styling, and indicator placement of the original equipment while adding a high-definition TFT message center capable of displaying a wide range of vehicle information. CNC machined housings are filled with in-house designed electronics, and a central control box makes installation and setup straightforward.

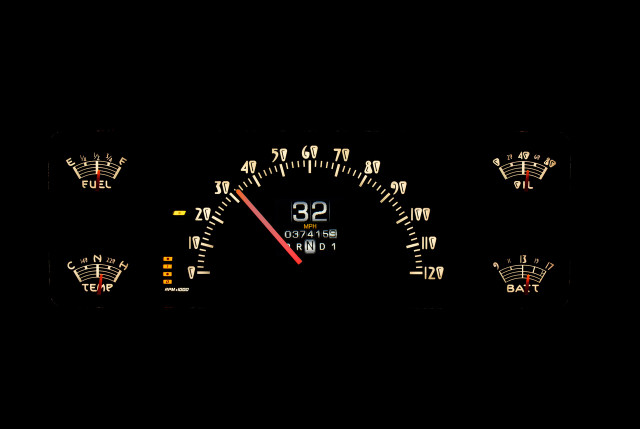

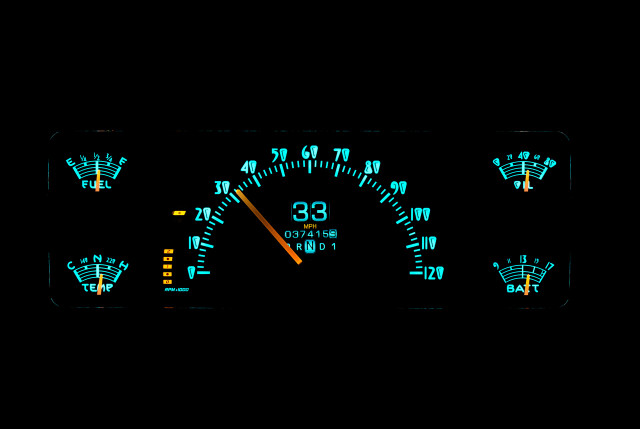

Full LED backlighting with RGB color control allows the needle color, sweep color, and digital display color to be independently customized, giving the look of a stock gauge cluster until the system is switched on and its modern capabilities are revealed.
Key Features
- Chrome plated, machined bezel for an OEM-style appearance
- Analog gauges for speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- High-definition TFT digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait-to-start, and two programmable auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable colors for needle, sweep, and TFT display, with 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton control via included two-sided rocker switch for setup and operation
- Free mobile app (Android and Apple compatible) for configuration and real-time gauge readouts
Specifications
- Part Number: RTX-40F-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Vehicle Fitment: 1940 Ford car (fits stock dash opening)
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing Ford and/or GM style speedometer cables; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with chrome plated, machined bezel
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Gear Position indicator requires the optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed for the application
- DIM-1 is a common accessory for on-the-fly rotary brightness control, sold separately
