Description
Description

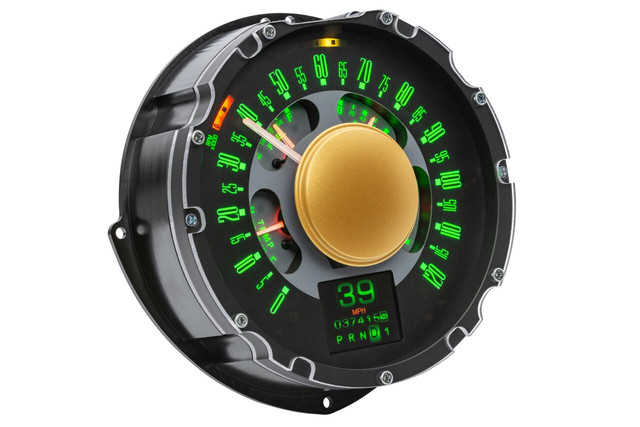

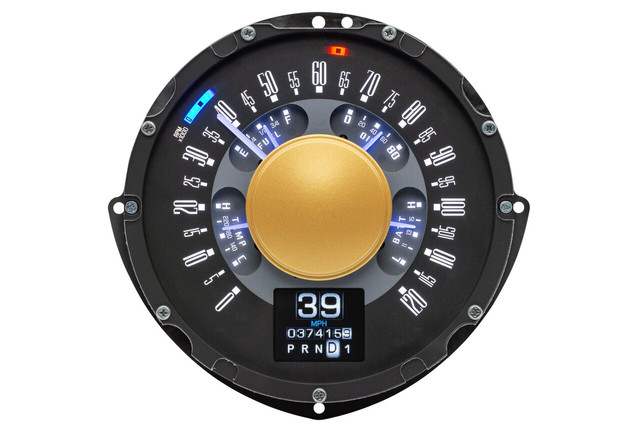

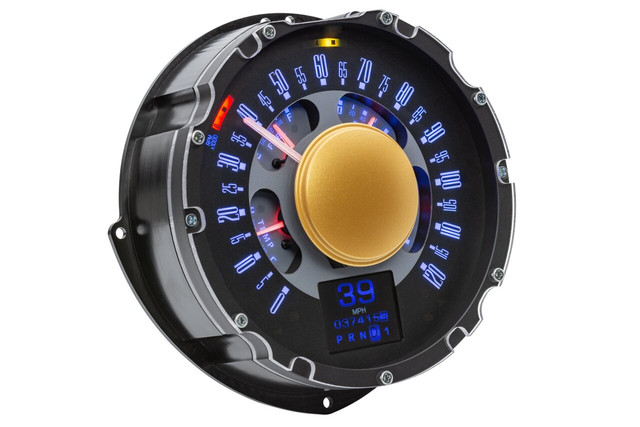

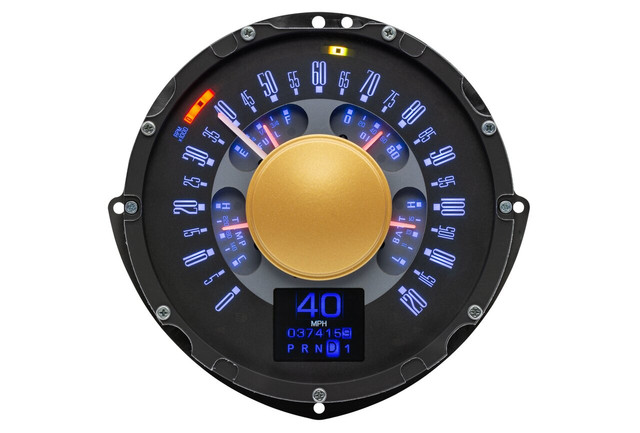

The Dakota Digital RTX-51F-X Instrument System is a bolt-in upgrade designed to give the stock, body-colored instrument bezel in a 1951 Ford car a modern facelift while retaining its classic appearance. Built from the lens back, this RTX system blends the look of the factory gauge cluster with the functionality of a late-model digital instrument package, including a full-color TFT message center that keeps the driver informed without looking out of place in a '50s-era car.
As part of Dakota Digital's RTX series, this system incorporates OEM-style design elements in layout, face styling, and indicators, so a casual glance may mistake it for original equipment. Once the switch is engaged and the LED backlighting activates in the chosen color scheme, the modern technology becomes apparent. CNC-machined housings are filled with in-house designed and built electronics, and a high-definition TFT message center can be configured to display a wide range of vehicle information. The system utilizes a central control box to simplify installation and setup.
This system uses the OEM bezel; the bezel itself is not included and is shown for visual/presentation purposes only.
Key Features
- Analog gauges for speedometer, oil pressure, water temperature, fuel level, and voltmeter, plus a digital bar graph tachometer
- Full-color TFT digital message center with standard displays and performance meters
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, and wait to start, plus two user-programmable auxiliary input indicators
- Each analog gauge sweep includes a red LED indicator for quick notice of a warning condition (except speedometer)
- Over 30 user-selectable color options to independently set needle, sweep, and TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full RGB LED backlighting with independent daytime and nighttime themes
- Daytime and nighttime brightness control via the RTX setup menu, toggled by the headlight switch (DIM-1 rotary dimmer available as a common accessory)
- Pushbutton rocker switch control for setup and driving-mode functions, with button-press feedback through the TFT message center or included buzzer
- Configurable through a free mobile app for Android and Apple devices, with real-time gauge readouts
- Calibration handled through the pushbutton switch or Bluetooth app, with most settings completed in a few taps and a short test drive
Specifications
- Part Number: RTX-51F-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus bushings for 12mm and 16mm x 1.5 threads
Notes
This system uses the OEM instrument bezel, which is not included with the kit. Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed for the application. Gear position indication requires the optional GSS-3000 sensor, sold separately.
