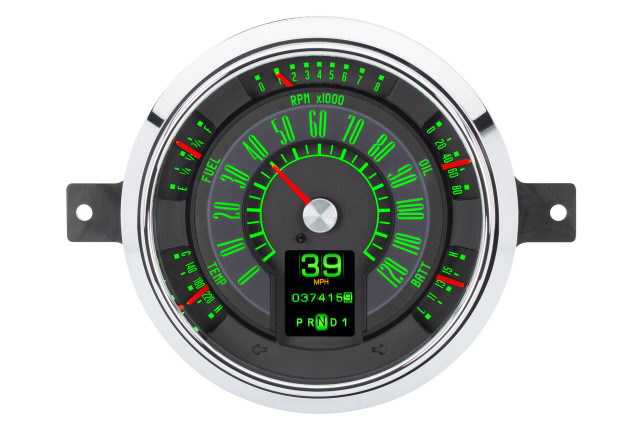

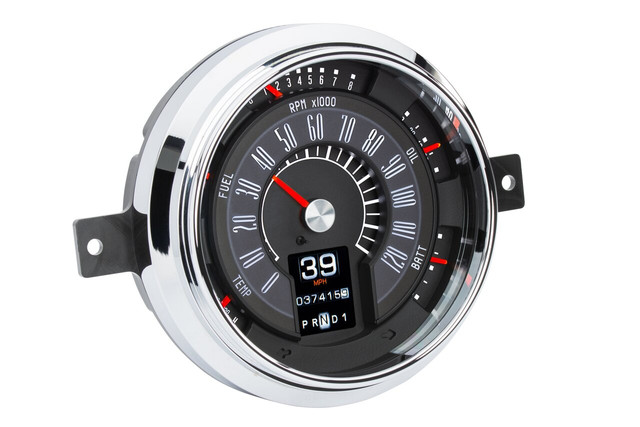

The Dakota Digital RTX-49F-X RTX Instrument System is a direct-fit instrument upgrade for 1949-50 Ford cars, designed to retain the stock appearance while delivering modern electronic features. The system includes a chrome plated, billet aluminum bezel and a CNC machined aluminum housing that faithfully reproduces the original gauge layout, face styling and indicators.
Each RTX system combines traditional analog gauges with a full color TFT message center and full LED backlighting, allowing the driver to display a wide range of vehicle information while retaining a classic, OEM-style look. The electronics are designed and built in-house by Dakota Digital, and the system utilizes a central control box for simplified installation and setup.
With over 30 user-selectable color options and 12 factory preset color themes, the RTX-49F-X can be configured to match nearly any interior or personal preference, while independently adjustable needle, sweep and digital display colors allow for further customization.
Key Features
- Direct-fit replacement for 1949-50 Ford car instrument panels
- Chrome plated, billet aluminum bezel included
- CNC machined aluminum gauge housing
- Full color TFT digital message center
- Full LED backlighting with RGB color capability
- Over 30 user-selectable colors for needles, sweeps and digital display
- 12 factory preset color themes plus full custom color selection
- Independently adjustable daytime and nighttime brightness
- Pushbutton controlled operation via included two-sided rocker switch
- Configurable through free mobile app for Android and Apple devices
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-49F-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replaces Ford and/or GM style speedometer cables (requires approximately 5" clearance between the cable drive output and any obstruction; part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 indicator (when vehicle is equipped)
- Wait to start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall
- High RPM recall
Notes
- Not all OEM indicator lamp functions may be replaced; unused indicators can be repurposed as needed for the application
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Speedometer and fuel level calibration are typically completed via the pushbutton switch or Bluetooth app and a short test drive, unless a GPS-50-2 is used, which eliminates the need for speedometer calibration
