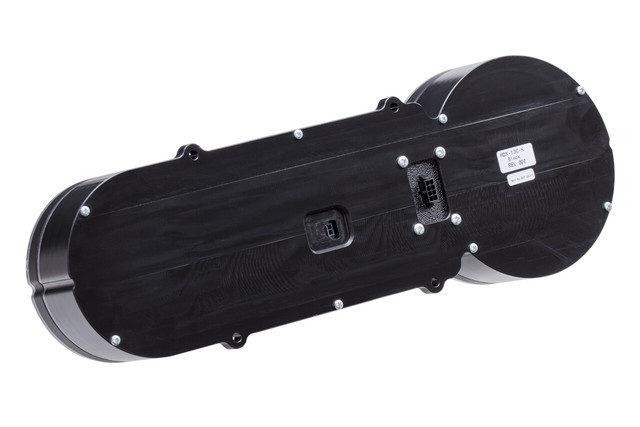

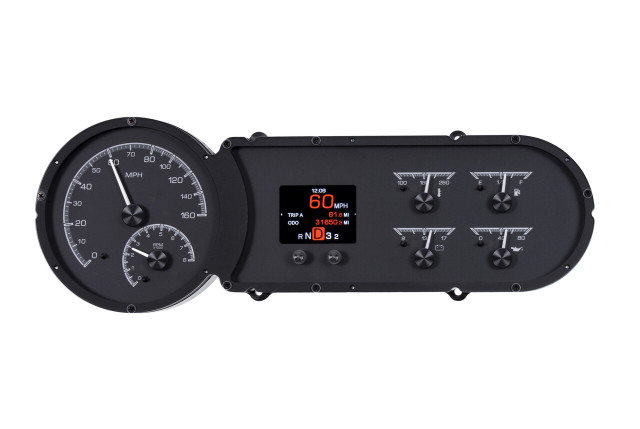

The Dakota Digital HDX-53C-K is a complete HDX instrument system engineered for 1953-54 Chevy cars, featuring a black alloy gauge face. One large TFT message center is flanked by six analog instruments nestled into a machined housing designed to fit a stock instrument bezel. After opening up a small section of the stock dash, this all-in-one instrumentation solution fits right in using the supplied sensors to link up with the drivetrain.
The system allows the user to select independent illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are manipulated with built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel.
Key Features
- Black alloy gauge-face styling with six analog gauges surrounding a large TFT digital message center
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options for independently setting needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection

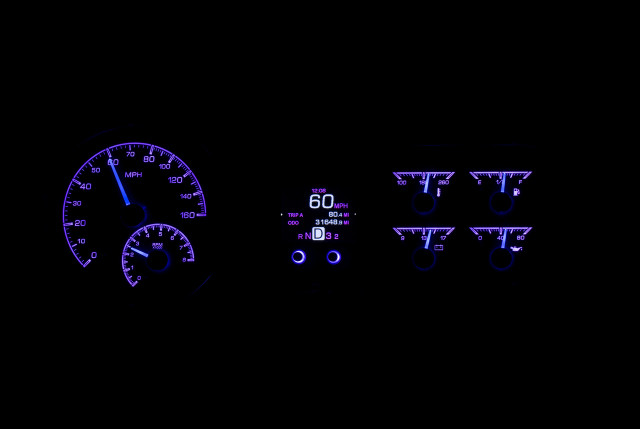

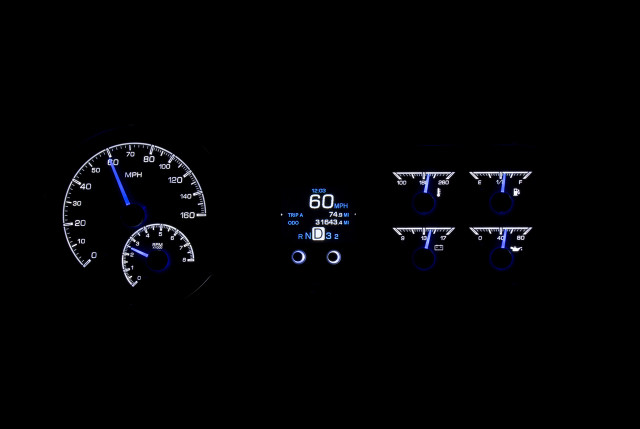

- Full LED/RGB backlighting with separate daytime and nighttime brightness and theme settings
- Capacitive-touch button controls plus optional Bluetooth app setup for Apple and Android devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Central control box simplifies wiring with vehicle-harness sourced signals and solid-state sending units
Specifications
- Part Number: HDX-53C-K
- Gauge Face Color: Black Alloy
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
Built-in Indicators
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (optional GSS-3000 sensor required)
- 4x4 (when vehicle is equipped)
- Wait to Start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
Notes

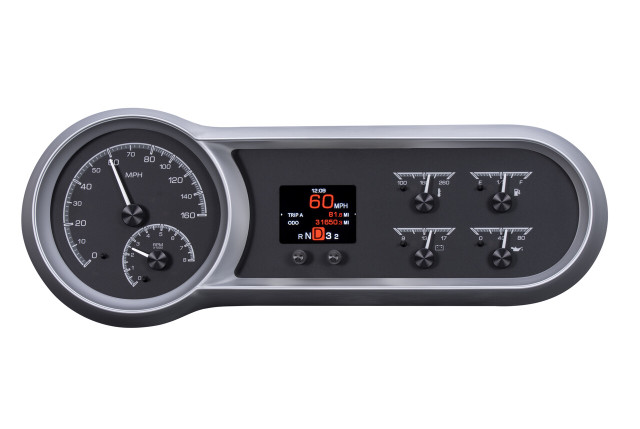

- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GSS-3000 sensor required for gear position indicator functionality
