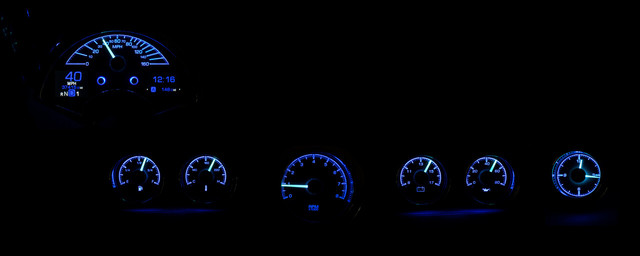

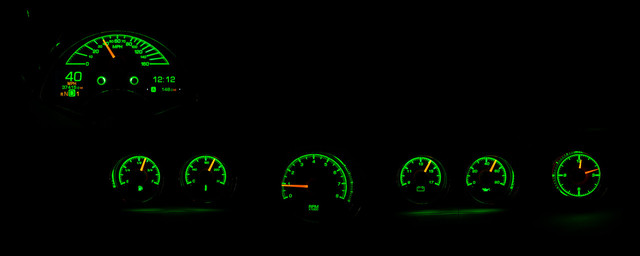

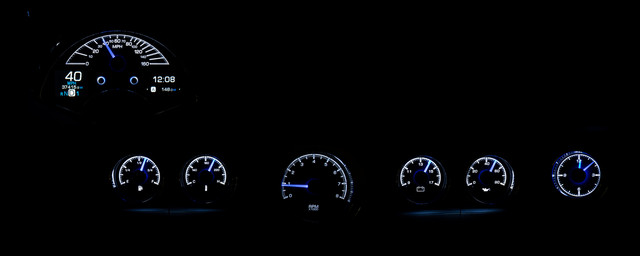

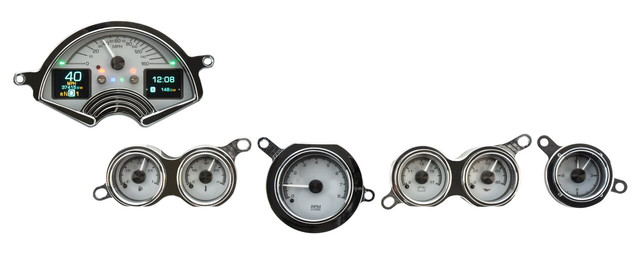

The Dakota Digital HDX-53C-VET-S is a direct-fit instrument system engineered specifically for 1953-57 Chevy Corvette applications, featuring a silver alloy gauge-face styling. This 7-gauge kit (including clock) slides directly into the OEM gauge openings and includes new chrome bezels, offering a seamless upgrade to high-tech functionality without altering the original dashboard appearance.
This HDX system offers twin TFT message centers along with the ability to connect to nearly any engine/transmission combination. Users can independently select illumination colors for gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to complement the button finish.
All HDX instrument systems feature dead-faced indicators and a red, settable warning light for each gauge. A central control box simplifies installation with vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Direct-fit design for 1953-57 Chevy Corvette OEM dashboard
- Silver alloy gauge-face styling
- Twin TFT digital message centers
- Over 30 user-selectable color options for needles, sweep, and digital TFT display
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Onboard capacitive-touch pushbuttons with LED-lit gauge face controls
- Bluetooth app control and monitoring for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs
- New chrome bezels included
Specifications
- Part Number: HDX-53C-VET-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock display
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Speed sensor requires approximately 5" clearance between the cable drive output and any obstruction; part number 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed
- Tremec and Ford style speed sensor adaptors available on request
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control
- GPS-50-2 can be used to eliminate the need for speedometer calibration
