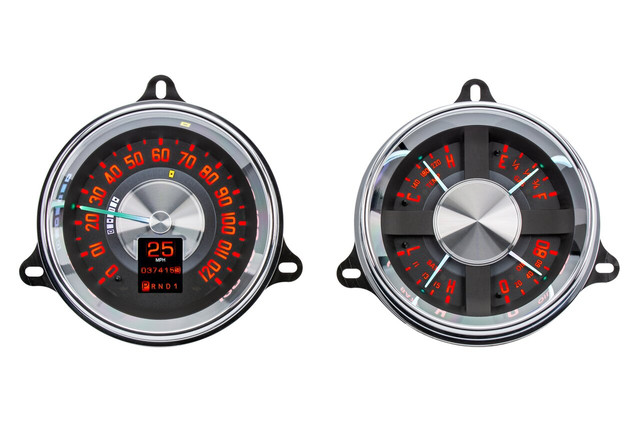

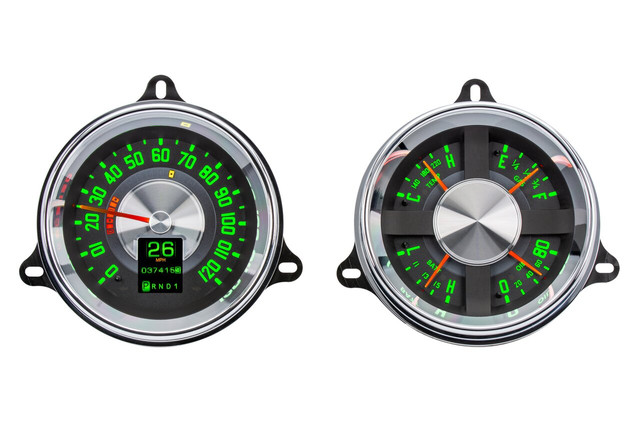

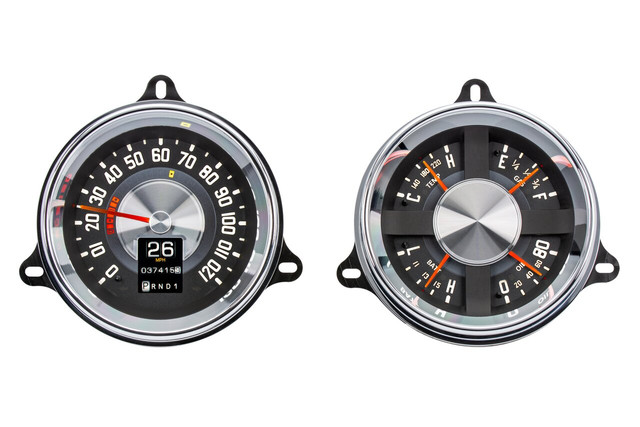

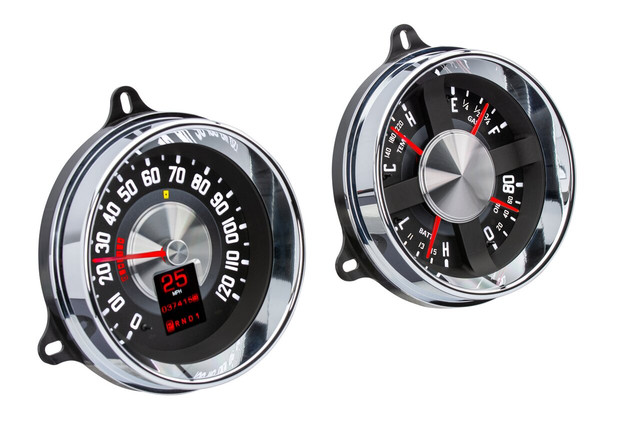

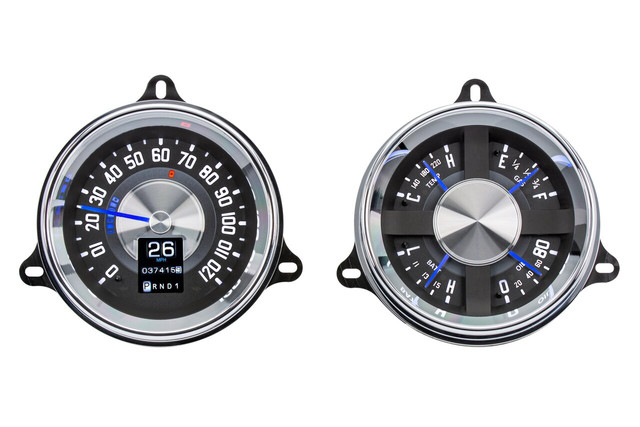

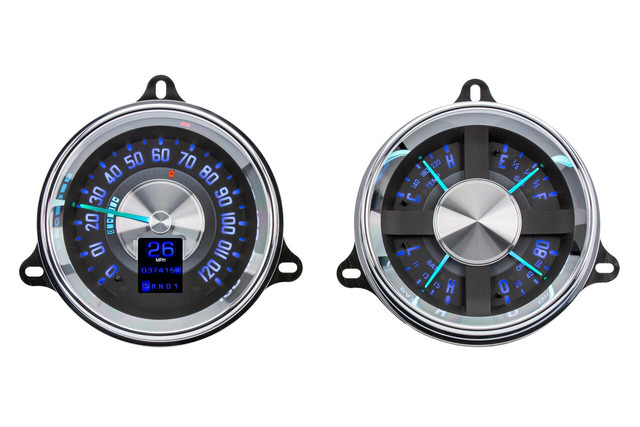

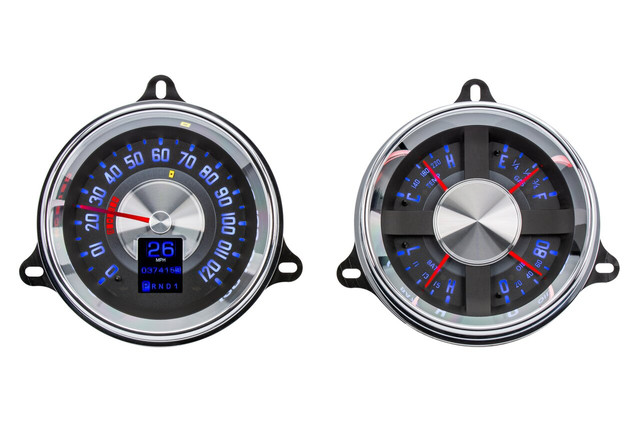

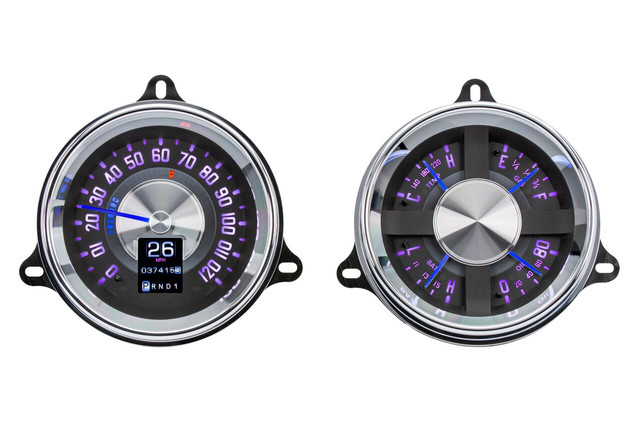

The Dakota Digital RTX-54C-PU-X is a dual-round RTX Instrument System designed specifically for the 1954-55 First Series Chevy Truck, delivering a stunning stock-inspired appearance with modern electronics underneath. Chrome-plated, machined aluminum billet bezels frame an OEM-styled 120 MPH speedometer with a bar-type tachometer nestled inside the sweep, preserving the vintage dash look while adding fully functional instrumentation.
A single TFT message center provides additional data for drivers who want more than the stock analog readouts ever offered. As part of Dakota Digital's RTX series, this system focuses on retaining an authentic OEM appearance in layout, face styling, and indicators, while incorporating late-model features such as programmable LED backlighting in a wide range of colors.

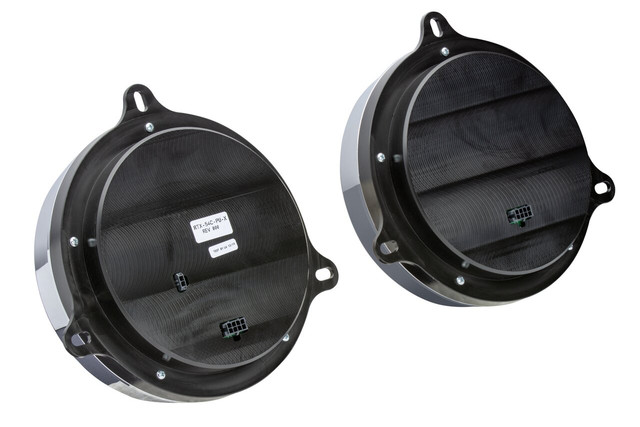

Built from the ground up with CNC-machined housings and in-house designed electronics, the RTX-54C-PU-X uses a central control box to simplify installation and setup. The high-definition TFT message center can be configured to display a wide variety of vehicle information to suit the driver's preference.
Key Features
- Chrome-plated billet aluminum bezels for a stock dual-round appearance
- OEM-styled 120 MPH speedometer with integrated bar-type tachometer sweep
- Single TFT digital message center for expanded data display
- Over 30 user-selectable colors for needle, sweep, and TFT display
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Pushbutton rocker switch control for programming and operation
- Configurable via free mobile app for Android and Apple devices
- Built-in warning indicators including turn signals, high beam, check engine, parking brake, and more
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
Specifications
- Part Number: RTX-54C-PU-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- Machined aluminum chrome bezel
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with 10 ft harnesses
- Cable driven speed sensor/generator with 10 ft harness
- Assorted NPT and metric thread bushings
Notes
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary dimmer control (sold separately)
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
