Description
Description

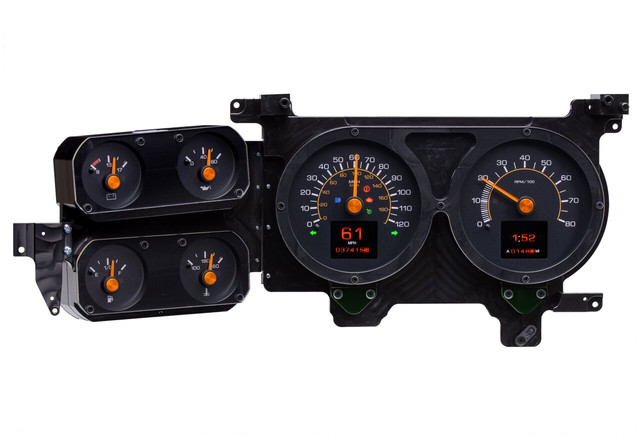

The Dakota Digital RTX-79C-PU-X is a direct-fit RTX Instrument System designed for 1979-87 Chevy and GMC pickups, as well as 1979-91 Chevy Blazer, GMC Jimmy and Suburban models. This system pays tribute to the original square-body gauge design while adding modern late-model electronics and display technology. It is a bolt-in solution that installs into your stock or aftermarket front bezel (bezel not included).
Each system features CNC-machined housings filled with in-house designed and built electronics, including twin high-definition TFT message centers that mimic the look of a vintage tumbler odometer while offering expanded, fully configurable digital readouts. Factory turn signal indicators are converted to modern LED lighting, and the OEM gear indicator can be retained or displayed digitally with the addition of an optional GSS-3000 sensor.

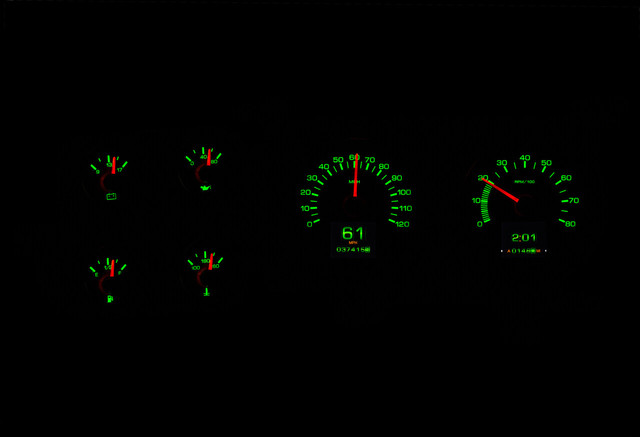

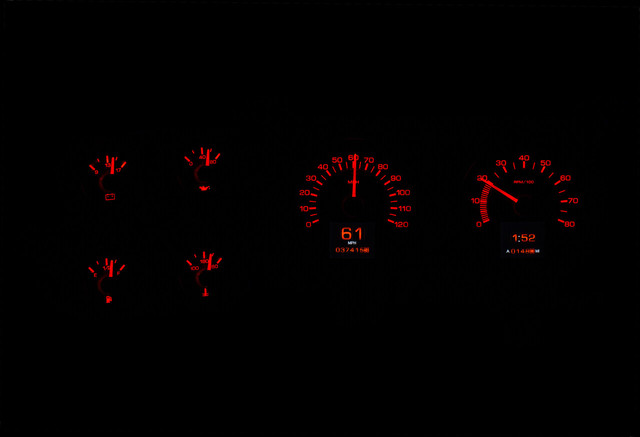

Full LED/RGB backlighting allows independent control of needle color, sweep color and digital display color, with over 30 user-selectable color options and 12 factory preset themes. A central control box simplifies installation and setup, and the system can be configured via the included pushbutton switch or the free Dakota Digital mobile app for Android and Apple devices.
Key Features
- Bolt-in design for use with stock or aftermarket front bezel (bezel not included)
- Twin high-definition TFT message centers styled after a vintage tumbler odometer
- Factory turn signal indicators converted to modern LED lighting
- OEM gear indicator retainable, or displayed digitally with optional GSS-3000 sensor
- Over 30 user-selectable colors for needle, sweep and digital display
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Pushbutton rocker switch control with button-press feedback via TFT message center or included buzzer
- Configurable through included pushbutton control or free mobile app (Android/Apple)
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4 and wait-to-start (when vehicle equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-79C-PU-X
- Vehicle Application: 1979-87 Chevy Pickup, 1979-91 Chevy Blazer, GMC Jimmy and Suburban
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable-driven speed sensor/generator, replaces GM-style speedometer cable, 10 ft harness (approximately 5" clearance required between cable drive output and any obstruction; Part # 130011 sold separately for sensor relocation when additional clearance is needed)
- Bushing kit: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Front bezel is not included; system is designed to use an OEM or reproduction-style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for digital gear position display
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
