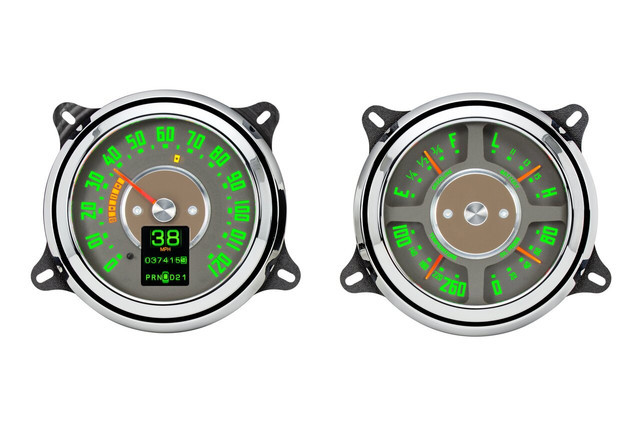

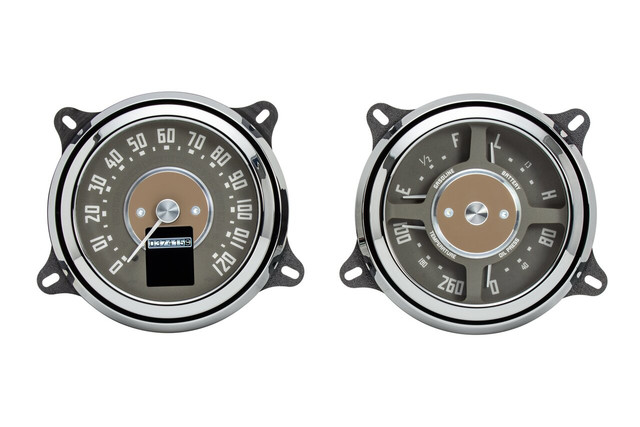

The Dakota Digital RTX-47C-PU-X is a direct-fit instrument system designed for 1947-53 Chevy/GMC pickups, featuring a stunning dual-round arrangement with chrome-plated billet aluminum bezels for a decidedly stock appearance. The OEM-styled 120 MPH speedometer houses a bar-type tachometer nestled inside its sweep, delivering a fully functional instrument package without disturbing the vintage dash vibe. A single TFT message center provides additional data for drivers who want more information at a glance.
As part of the RTX series, this system retains that classic stock look while incorporating the late-model features enthusiasts love. Careful attention has been given to OEM design elements in layout, face styling and indicators, so a casual glance may mistake these gauges for original equipment—until the LED backlighting comes on in your favorite color scheme.

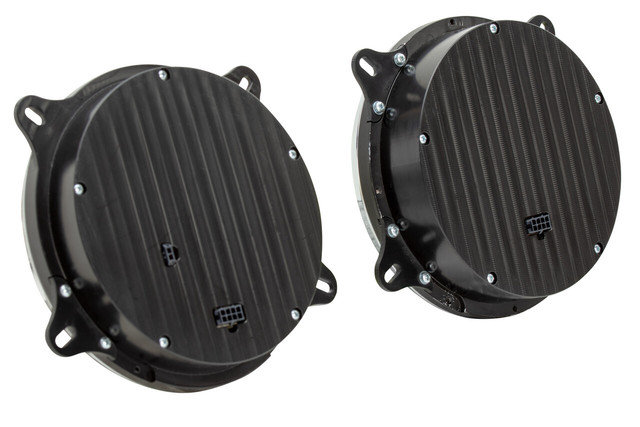

Built from CNC-machined housings with electronics designed and built in-house, the RTX series utilizes a central control box to simplify installation and setup. The high-definition TFT message center can be fully configured to display a wide range of information to suit the driver's needs.
Key Features
- Dual-round gauge cluster with chrome-plated billet aluminum bezels included
- OEM-styled 120 MPH speedometer with integrated bar-type tachometer sweep
- Single TFT message center for additional vehicle data

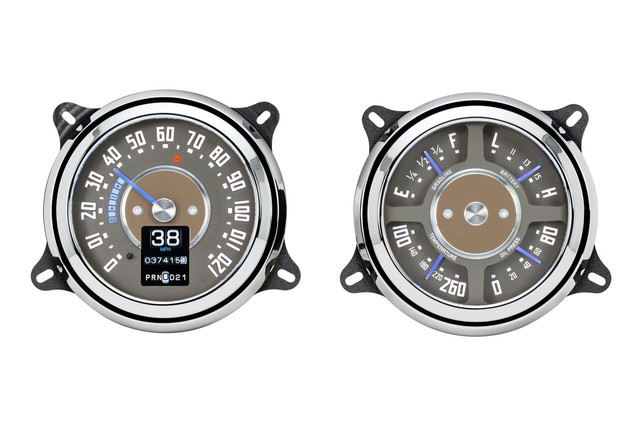

- Over 30 user-selectable color options for independently adjusting needle, sweep and TFT display colors
- 12 factory preset color themes, or fully customizable color zones

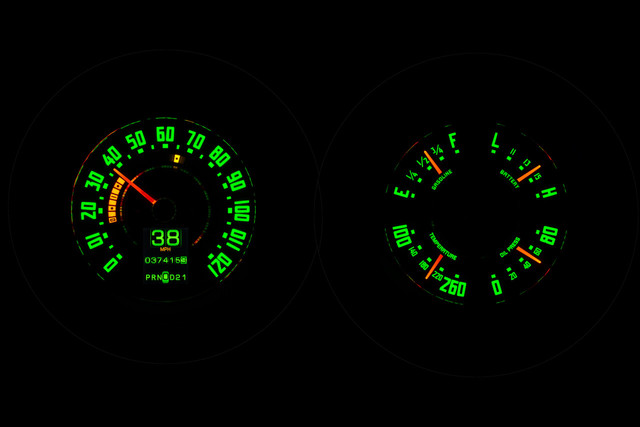

- Full LED/RGB backlighting with unique daytime and nighttime themes
- Pushbutton rocker switch control for calibration and menu navigation
- Configurable via free mobile app (Android and Apple compatible) with real-time gauge readouts

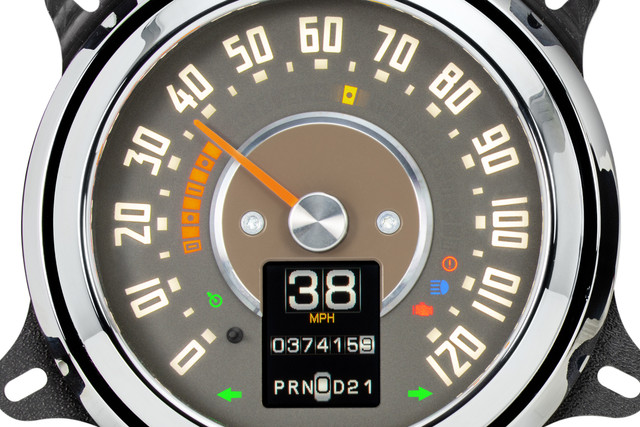

- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, 4x4 and wait-to-start
- Two auxiliary input indicators with user-programmable labels
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
Specifications
- Part Number: RTX-47C-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Required Dash Opening: 5.2"
- Overall Dimensions: 5.95"
- Typical Depth Range: 1.5"-2.5" (mimics stock gauge cluster depth)
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing GM-style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- Chrome-plated billet aluminum bezel
- Central control box
- Two-sided pushbutton rocker switch
- Included buzzer for button-press feedback
- Water temperature and oil pressure sensors with harnesses
- Cable-driven speed sensor/generator with harness
- Bushing assortment
Notes
- Dakota Digital Direct-Fit instrument systems are fully engineered to fit the stock dash opening of the vehicle they are designed for; use in other applications may present mounting and viewing angle challenges.
- Any modifications for fitment should be made to the vehicle's dash or surrounding housings rather than the RTX system to preserve warranty coverage.
- Gear Position indicator requires optional GSS-3000 sensor (sold separately).
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request.
- DIM-1 is a common accessory for adding on-the-fly rotary dimmer control (sold separately).
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed.
