Description

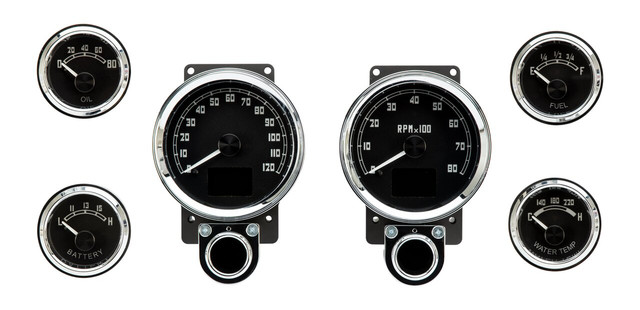

The Dakota Digital RTX-55-GMC-X is a complete RTX instrument system engineered specifically for the 1955-59 GMC truck, built to fill the stock dash panel while utilizing the factory mounting points for a installation that requires no panel modification. New CNC machined, chrome-plated aluminum gauge trim rings are included with the system.

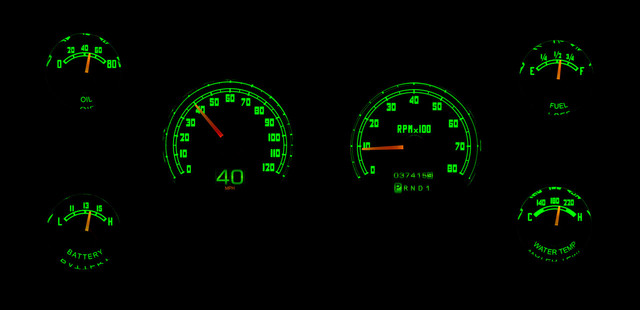

The RTX series retains the stock gauge look while adding modern features, with careful attention paid to OEM-style layout, face styling, and indicators. At a glance the system appears factory-original, but once powered on, full LED backlighting in your choice of color scheme reveals the advanced technology within.
CNC machined housings contain electronics designed and built in-house by Dakota Digital, including high-definition TFT message centers that can be configured to display a wide range of vehicle information. As with other Dakota Digital systems, the RTX series utilizes a central control box to simplify installation and setup.
Key Features
- Direct replacement for the 1955-59 GMC truck stock dash panel, using factory mounting points
- CNC machined, chrome-plated aluminum gauge trim rings included
- Analog gauges include Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, and Voltmeter
- High-definition TFT digital message center(s) with standard displays including Odometer, Dual Trip Meter, Clock, and Estimated Range/Miles to Empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall

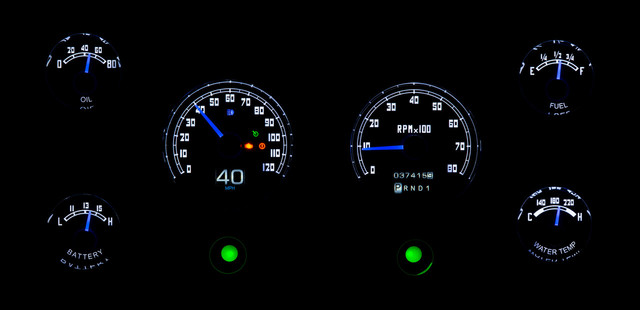

- Built-in indicators for Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, Wait to Start, and two user-programmable auxiliary inputs
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes, plus fully customizable color zones
- Independently adjustable daytime and nighttime brightness, controlled through the setup menu and toggled by the headlight switch
- Full RGB LED backlighting for strong visibility day and night
- Pushbutton rocker switch control for setup and operation, with button-press feedback via the TFT message center or included buzzer
- Configurable through the free Dakota Digital mobile app for Android and Apple devices, enabling menu navigation and real-time gauge readouts
Specifications
- Part Number: RTX-55-GMC-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes a 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Kit Includes
- RTX analog gauge cluster with digital TFT message center(s)
- CNC machined, chrome-plated aluminum gauge trim rings
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Bezel/facia is not included; system uses an OEM or reproduction style bezel/facia
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for your application
- Gear Position indicator requires the optional GSS-3000 sensor, sold separately
- On-the-fly rotary brightness control can be added using the optional DIM-1 accessory
