Description

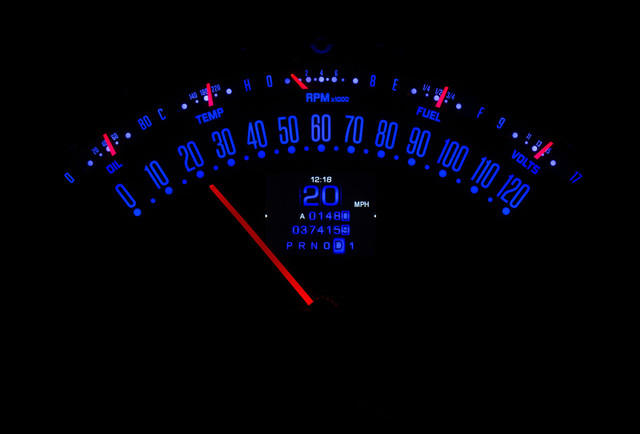

The Dakota Digital RTX-55C-X Instrument System brings 21st century technology to the classic 1955-56 Chevy car dashboard. Designed to retain the stock cluster appearance, this system features a full-color TFT message center and user-adjustable LED backlighting, including a mesh pattern behind the speedometer needle for an authentic vintage look. The casual observer will assume it's original equipment until the key is turned and the customizable lighting comes to life.
Every detail of the RTX-55C-X has been engineered to incorporate OEM-style layout, face styling, and indicators while delivering the late-model features drivers want. CNC-machined housings house in-house designed electronics, and a high-definition TFT message center can be configured to display a wide range of information. A central control box simplifies installation and setup.
This system uses a stock or reproduction style bezel, which is not included and must be sourced separately. An RLC-55C clock is available separately to complete the passenger side of the dash.
Key Features
- Retains the stock 1955-56 Chevy cluster appearance with a mesh pattern behind the speedometer needle
- Full-color TFT digital message center
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, plus fully customizable color zones
- Full RGB LED backlighting with independent daytime and nighttime themes
- Pushbutton control via included two-sided rocker switch
- Configurable through free mobile app for Android and Apple devices
- CNC-machined housing with in-house designed and built electronics
- Central control box for simplified installation and setup
Specifications
- Part Number: RTX-55C-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall
- High RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when vehicle equipped)
- Gear position (requires optional GSS-3000 sensor)
- 4x4 indicator (when vehicle equipped)
- Wait to start (when vehicle equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM-style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use a stock or reproduction style bezel
- Instrument system eliminates the stock automatic gear shift indicator above the steering column; add GSS-3000 Gear Shift Sensor (sold separately) to display gear position
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- RLC-55C clock available separately to complete the passenger side dash
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
