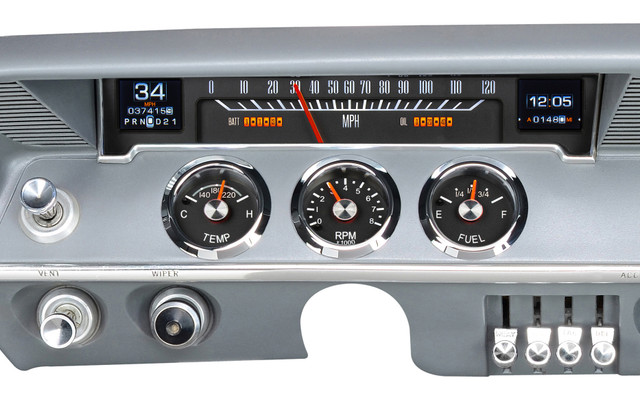

The Dakota Digital RTX-61C-IMP-X RTX Instrument System brings multi-function, multi-color technology to your 1961-62 Chevy Impala dashboard while preserving the stock appearance you love. New aluminum chrome bezels are supplied for the round gauges, and the original stamped trim for the speedometer is reused, keeping the factory look intact.
As part of Dakota Digital's RTX series, this system incorporates OEM design elements in layout, face styling, and indicators so it looks right at home in your dash. Once the LED backlighting illuminates in your chosen color scheme, the late-model features and performance become apparent. CNC machined housings contain electronics engineered in-house, including a high-definition TFT message center that can be configured to display a wide range of vehicle information.
Installation and setup are simplified through the use of a central control box, and the system is fully calibrated and operated via an included pushbutton switch or the optional Bluetooth mobile app.
Key Features
- Analog gauges include speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- High-definition TFT digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, and two programmable auxiliary inputs
- Each analog gauge sweep includes a red LED warning indicator (except speedometer)

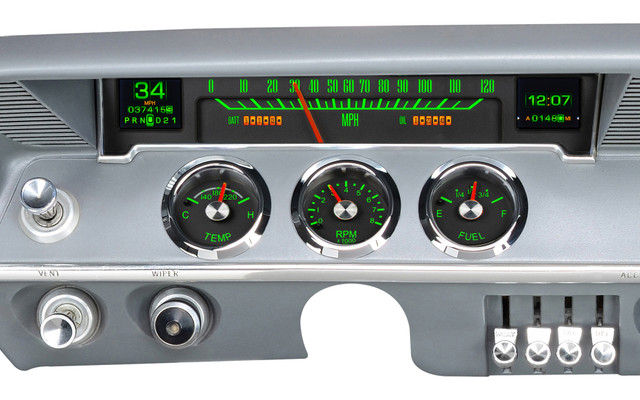

- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors, with 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, controlled through the RTX setup menu and toggled by the headlight switch
- Full LED/RGB backlighting for sharp contrast and customizable color themes
- Push-button control via included two-sided rocker switch, with button-press feedback through the TFT display or included buzzer
- Full system configuration available through the free Dakota Digital mobile app for Android and Apple devices
Specifications
- Part Number: RTX-61C-IMP-X
- Speedometer Range: 0-120 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part #130011 available separately for relocation when additional clearance is needed)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; new aluminum chrome bezels are supplied for the round gauges, and your stock speedometer trim is reused
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for gear position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
