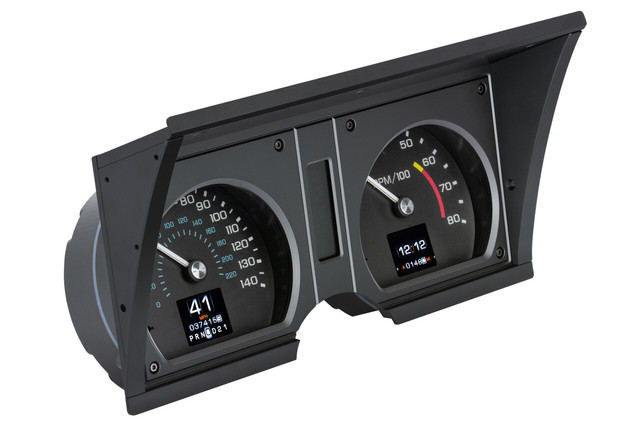

The RTX-78C-VET-X RTX Instrument System brings modern electronics to your 1978-82 Chevy Corvette while retaining a stock appearance. Designed as a direct fit replacement, this system installs using your stock gauge bezels and features two TFT message centers, full LED backlighting, and a host of late-model features in a classic layout.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing late-model features. Extensive effort has gone into incorporating OEM design elements regarding layout, face styling, and indicators, so that at a casual glance these gauges appear to be original equipment. Once illuminated, the LED backlighting reveals a wide range of available color schemes.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house by Dakota Digital. The high-definition TFT message centers can be fully configured to display a wide range of information, and the RTX series utilizes a central control box to simplify installation and setup.
Key Features
- Direct fit design uses your stock gauge bezels for installation
- Two high-definition TFT message centers with configurable displays

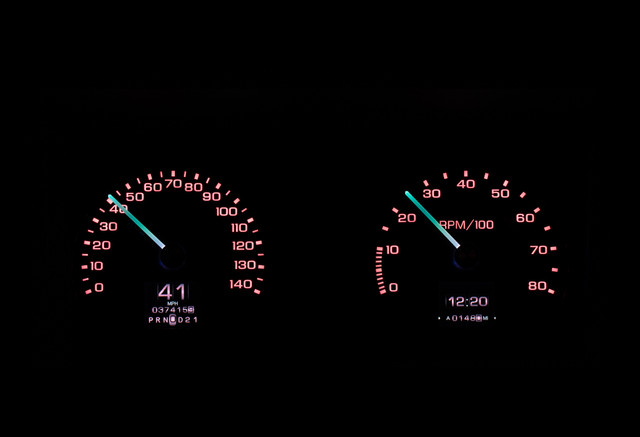

- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, plus full custom color zone selection
- Daytime and nighttime brightness control through the RTX setup menu, toggled by the headlight switch
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, and more
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Pushbutton control via included two-sided rocker switch for setup and menu navigation
- Configurable through a free mobile app for Android and Apple devices
- Each analog gauge sweep (except speedometer) includes a red LED indicator for warning conditions
Specifications
- Part Number: RTX-78C-VET-X
- Speedometer: 0-140 MPH
- Tachometer: 0-8,000 RPM

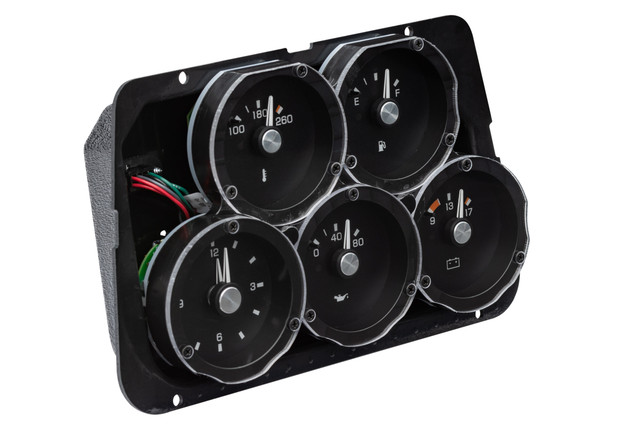

- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hr analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays

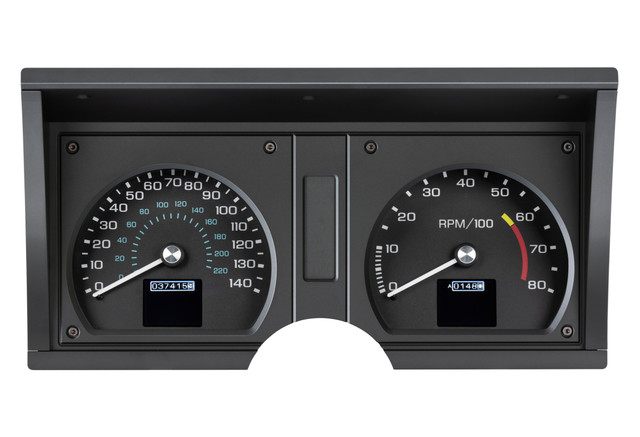

- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12 hour clock
- Estimated range/miles to empty
- 0-60 MPH timer and 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes a 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, along with 12mm and 16mm x 1.5 thread applications
Kit Includes

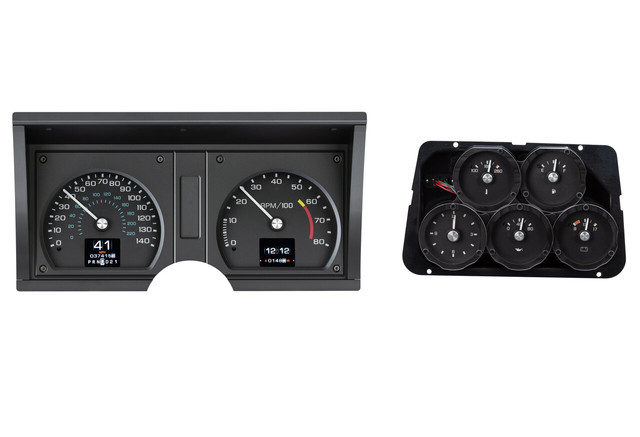

- RTX instrument cluster with CNC machined housing
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assortment of mounting bushings
Notes
- Center console trim bezel not included
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory (sold separately) available for on-the-fly rotary dimmer control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Speedometer calibration can be bypassed with use of GPS-50-2 (sold separately)
