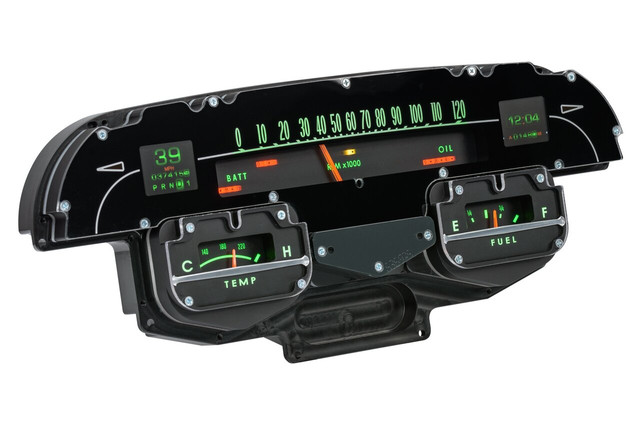

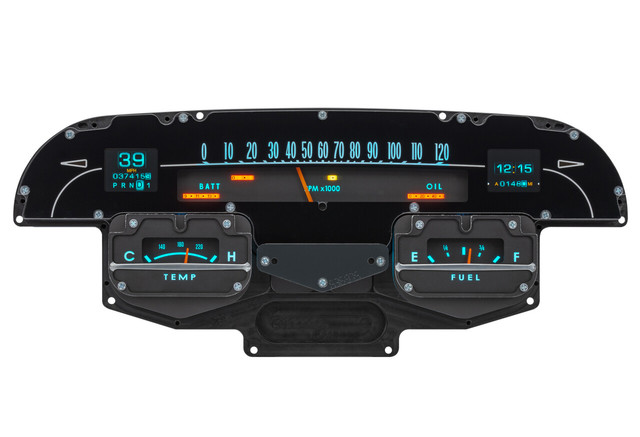

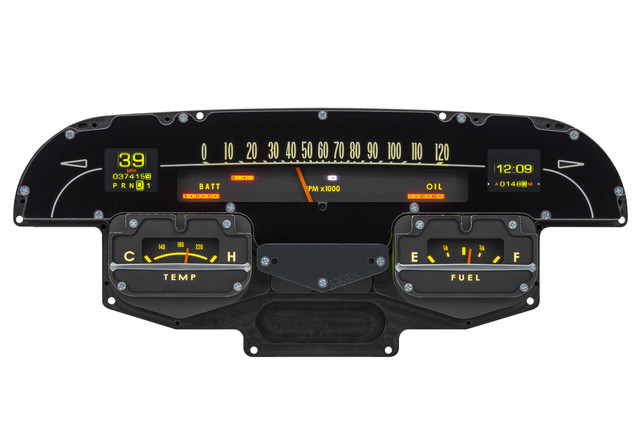

The Dakota Digital RTX-58C-IMP-X RTX Instrument System faithfully recreates the stock 1958 Chevy full-size car instrument cluster while adding the late-model features drivers want today. The long, sweeping speedometer look is preserved, with a hidden tachometer, voltmeter, and oil pressure display located just under the speedometer sweep. Full-color TFT message centers are positioned just inside the OEM-appearing turn signals on each end of the cluster.
The RTX series focuses on retaining the factory appearance without sacrificing modern functionality. Dakota Digital's engineers incorporated OEM design elements for layout, face styling, and indicators so that a casual glance may mistake this system for original equipment—until the LED backlighting comes on in your chosen color scheme.
CNC-machined housings are filled with in-house designed and built electronics. The high-definition TFT message centers can be fully configured to display a wide range of information, and a central control box simplifies installation and setup. This system requires your stock instrument housing and front bezel trim (OEM or reproduction style) for installation; the bezel is not included.
Key Features
- Recreates the stock 1958 Chevy full-size instrument cluster appearance with modern electronics
- Hidden tachometer, voltmeter, and oil pressure bar graph gauges located under the speedometer sweep
- Full-color TFT message centers located inside the OEM-appearing turn signal housings
- CNC-machined housings with in-house designed and built electronics
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
- Central control box for simplified installation and setup
- Pushbutton rocker switch control plus free mobile app configuration for Android and Apple devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, and two user-programmable auxiliary inputs
Specifications
- Part Number: RTX-58C-IMP-X
- Speedometer: 0-120 MPH
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Requires your stock instrument housing and front bezel trim (OEM or reproduction style) for installation; bezel is not included
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Calibration is performed via the included pushbutton switch or remote Bluetooth app
