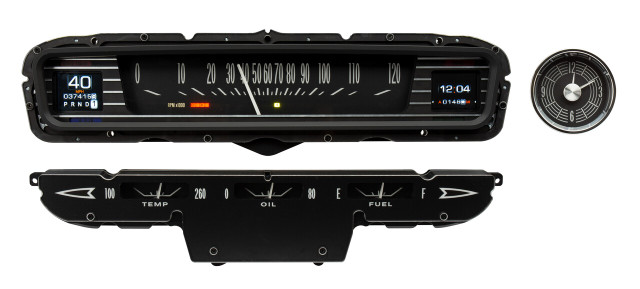

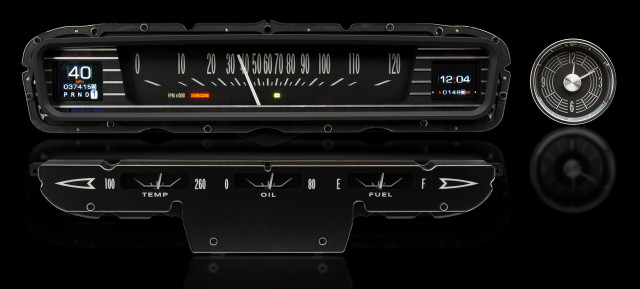

The Dakota Digital RTX-59C-CAD-X Instrument System brings late-model technology to the classic 1959 Cadillac while respecting the original OEM gauge cluster layout. Every effort has been made to incorporate OEM design elements in the layout, face styling and indicators, so at a casual glance the system appears to be factory original. Once the lighting is activated, however, the fully configurable LED backlighting and high-definition TFT message centers reveal just how far beyond stock this system truly goes.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house by Dakota Digital. The system utilizes a central control box to simplify installation and setup, and allows simple integration with OEM or aftermarket powerplants. A 12-hour analog clock is included.
Key Features
- Retains the traditional Cadillac OEM gauge cluster layout and styling
- Analog speedometer, oil pressure, water temperature and fuel level gauges with digital bar graph tachometer
- High-definition TFT digital message centers for odometer, dual trip meters, clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two user-programmable auxiliary inputs
- Over 30 user-selectable color options for needle, sweep and digital TFT display colors, plus 12 factory preset color themes
- Full RGB LED backlighting with independent daytime and nighttime brightness and color themes
- Pushbutton rocker switch control for calibration and menu navigation, with audible buzzer feedback
- Configurable through a free mobile app for Android and Apple devices with Bluetooth connectivity
- Clock included
Specifications
- Part Number: RTX-59C-CAD-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Tachometer: 0-8,000 RPM
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 available separately for relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted sensor bushings
Notes

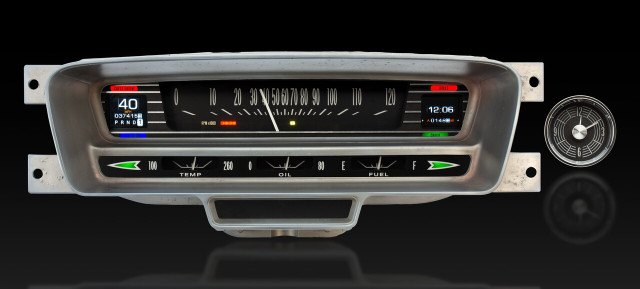

- Bezel not included; system uses an OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- On-the-fly rotary dimming control can be added with the optional DIM-1 accessory (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
