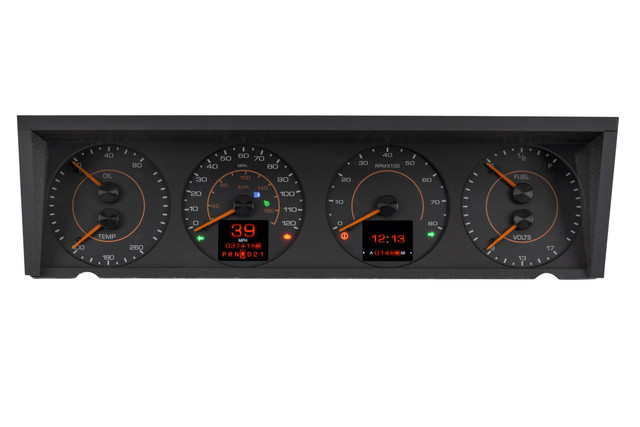

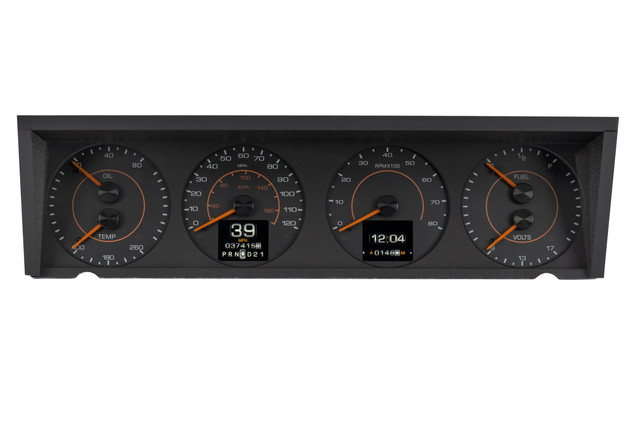

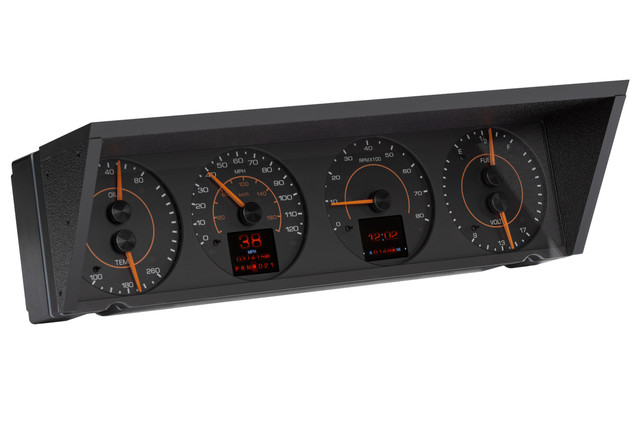

The Dakota Digital RTX-77C-CAP-X is a direct bolt-in RTX Instrument System designed for 1978-87 Chevy Caprice and Impala models, retaining the stock OEM look while adding modern electronic features. The gauge cluster incorporates OEM-style layout, face styling and indicators, so a casual glance will reveal nothing out of the ordinary, until the color-changing LED backlighting is switched on.
Each cluster is built around a CNC-machined housing with in-house designed electronics and a high-definition TFT message center that can be configured to display a wide range of vehicle information. A central control box simplifies installation and setup, making this system suitable for stock drivetrains as well as LS-swapped applications.
Key Features
- Direct bolt-in installation into the stock dash opening
- Color-changing LED backlighting with over 30 user-selectable color options for needle, sweep and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full RGB backlighting with independent daytime and nighttime themes
- High-definition TFT digital message center(s) with configurable displays
- Mobile app compatibility for Android and Apple devices for setup, configuration and real-time gauge readouts
- Pushbutton rocker switch control for calibration and menu navigation
- Built-in indicator lamps, including turn signals, high beam, check engine, parking brake, cruise control, and more
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
Specifications
- Part Number: RTX-77C-CAP-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM-style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Front dash bezel not included; kit fits into the stock dash opening
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
