Description

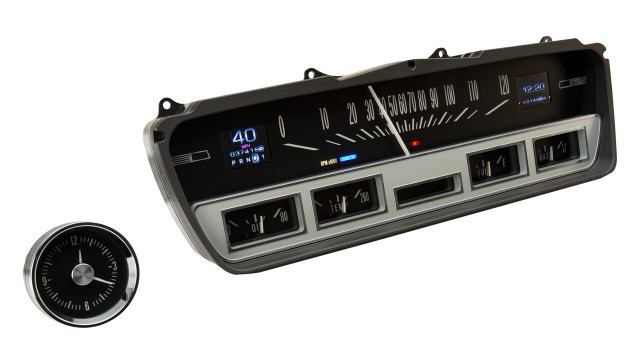

The 1960 Cadillac RTX Instrument System (RTX-60C-CAD-X) from Dakota Digital honors the classic OEM gauge cluster layout of this iconic Cadillac while delivering every modern feature you could want in a gauge system. The spacious interior, brightwork, and flowing lines that made the 1960 Cadillac so memorable are matched by an instrument design that retains that stock appearance without sacrificing late-model performance and functionality.

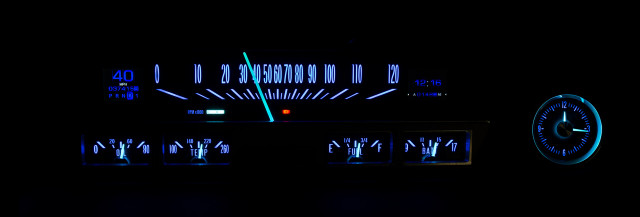

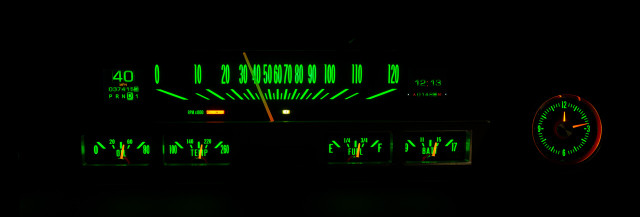

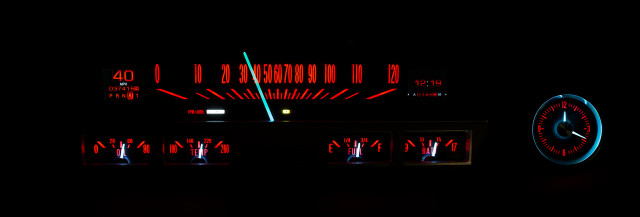

The RTX series incorporates OEM design elements in layout, face styling, and indicators, so at a casual glance the cluster appears factory original. Once powered on, full LED backlighting in your chosen color scheme reveals the advanced technology hidden within. CNC-machined housings contain electronics designed and built in-house by Dakota Digital, and a high-definition TFT message center can be configured to display a wide range of vehicle information.
Installation and setup are simplified through a central control box, along with a two-sided pushbutton rocker switch and companion mobile app for Android and Apple devices. This system is designed to use an OEM or reproduction style bezel.
Key Features
- Analog speedometer, tachometer, oil pressure, water temperature, fuel level, voltmeter, and 12-hour analog clock
- High-definition TFT digital message center with odometer, dual trip meters, clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, and wait-to-start, plus two user-programmable auxiliary indicators
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
- Over 30 user-selectable colors for needle, sweep, and TFT display, with 12 factory preset color themes or full custom color zone selection
- Independently adjustable daytime and nighttime brightness, controlled through the RTX setup menu and toggled by the headlight switch
- Full LED/RGB backlighting for sharp contrast and visibility day or night
- Two-sided pushbutton rocker switch included for programming and operation, with button-press feedback via the TFT display or included buzzer
- Free mobile app for Android and Apple devices allows complete system configuration and real-time gauge readouts
Specifications
- Part Number: RTX-60C-CAD-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction; Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed; Tremec and Ford style adaptors available on request
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- System is designed to use an OEM or reproduction style bezel (not included)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed to suit your application
- Optional GSS-3000 sensor required for gear position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
