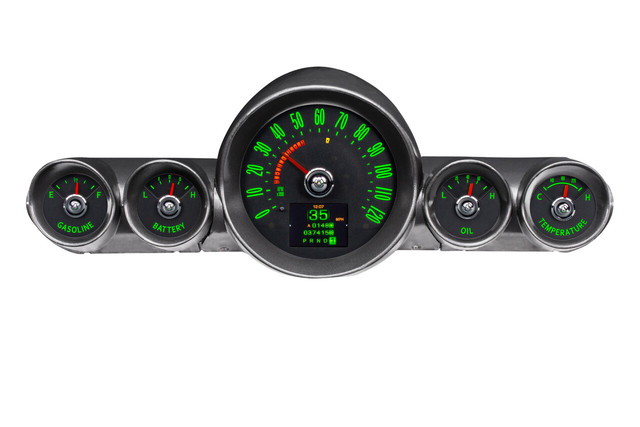

The Dakota Digital RTX-59C-IMP-X Instrument System brings a fresh, high-tech update to the iconic 1959-60 Chevy Impala and El Camino dash cluster while retaining the OE-styled quintuple gauge layout that defines these cars. Each gauge face is paired with a large, full-color TFT digital display, giving you the classic look with modern functionality built in.
CNC machined housings are filled with in-house designed and built electronics, and the system utilizes a central control box to simplify installation and setup. The RTX series lets you select your own lighting colors and themes, so when the lights come on, the system transforms from a subtle factory-style look into a fully customized digital gauge package.

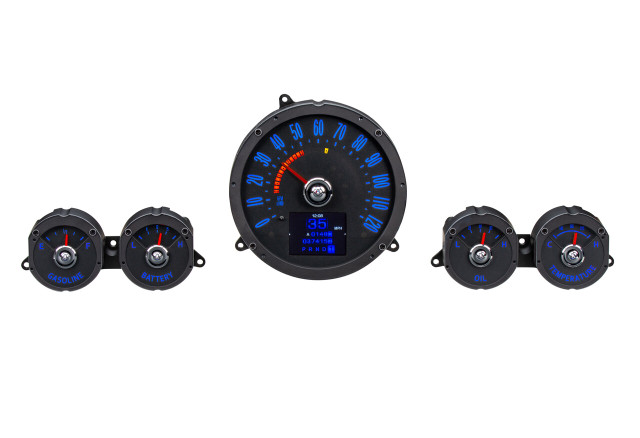

This system requires the use of stock gauge pods, which Dakota Digital does not offer. It is designed to use an OEM or reproduction style bezel, which is not included.
Key Features
- OE-style gauge faces with full color TFT digital message center display
- CNC machined gauge housings with in-house designed and built electronics
- Over 30 user-selectable color options for independently changing needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with separate daytime and nighttime themes
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two auxiliary inputs with user-programmable labels
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
- Central control box for simplified installation and setup
Specifications
- Part Number: RTX-59C-IMP-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer (digital bar graph): 0-8,000 RPM
- Standard Displays: Odometer (settable, million mile), Dual A/B Trip Meter (0-9,999.9), 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Requires use of stock gauge pods, which Dakota Digital does not offer
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor
- DIM-1 accessory available for on-the-fly rotary dimmer control
