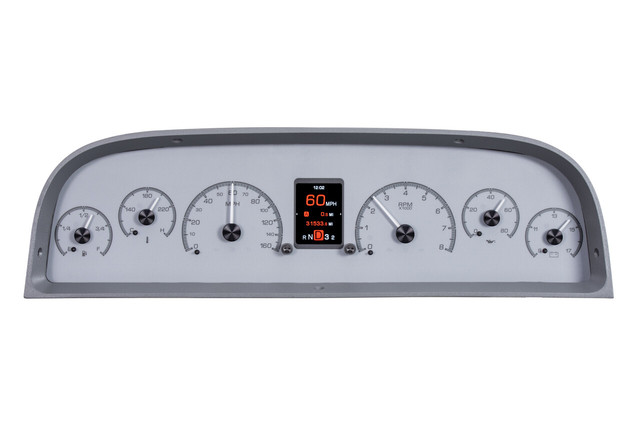

The Dakota Digital HDX-60C-PU-S is a direct-fit HDX instrument system designed specifically for 1960-63 Chevy pickups, featuring a silver alloy gauge-face finish. Built to utilize the stock bezel or trim, this system is a drop-in upgrade that combines a large TFT message center with six analog gauges for a clean, integrated appearance. This system does not fit GMC trucks.
The HDX system allows independent control of illumination colors for the gauge readings, needles, and message center, with calibration and settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons, and the system features dead-faced indicators along with a red, settable warning light for each gauge.
Installation is simplified through a central control box that sources signals from the vehicle harness, paired with supplied solid-state sending units that connect cleanly to their respective terminals. The bezel is not included and is required separately, using an OEM or reproduction style bezel.
Key Features
- Direct-fit replacement utilizing the stock bezel or trim for 1960-63 Chevy pickups (not for GMC trucks)
- Silver alloy gauge-face styling with large TFT digital message center
- Over 30 user-selectable color options for needles, sweeps, and digital display
- 12 factory preset color themes, plus fully custom color zone selection

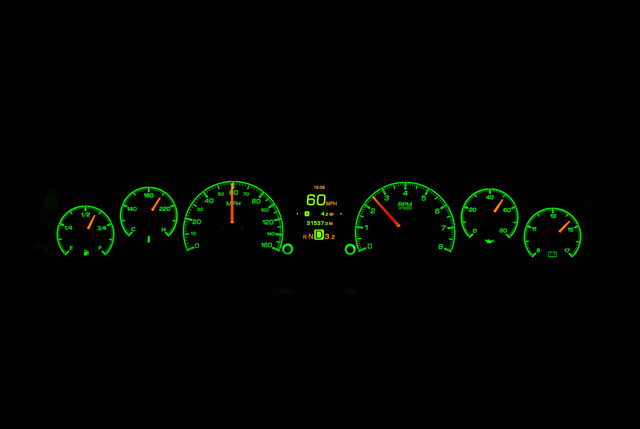

- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning LED built into each analog gauge sweep
- Onboard capacitive-touch pushbuttons with Bluetooth app control for Android and Apple devices
- Central control box simplifies installation using vehicle-harness sourced signals
- Includes solid-state sending units for clean connection to vehicle terminals
Specifications
- Part Number: HDX-60C-PU-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replaces GM style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 sold separately for relocation if additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 accessory available to eliminate the need for speedometer calibration
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
