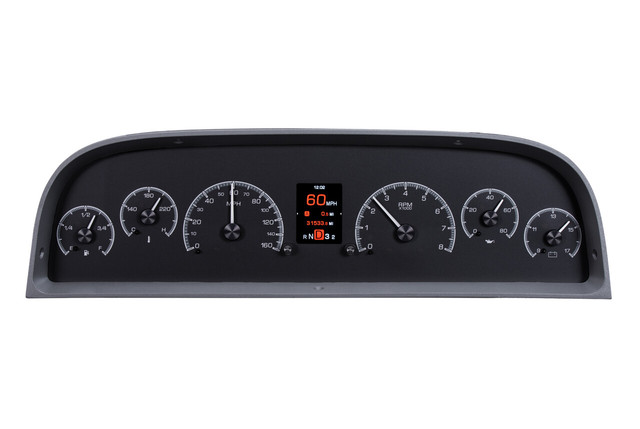

The Dakota Digital HDX-60C-PU-K is a direct-fit HDX instrument system engineered specifically for 1960-63 Chevy pickups, featuring black alloy gauge-face styling. The 1960-63 dashboard design requires its own specific instrument cluster, and this kit utilizes the stock bezel or trim for a true drop-in upgrade. This system does not fit GMC trucks.
The HDX system combines a large TFT message center with six analog gauges, allowing independent control over illumination colors for gauge readings, needles, and the message center display. Calibration and personal settings are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
All HDX instrument systems feature dead-faced indicators and a red, settable warning light for each gauge. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid state sending units cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Direct-fit HDX system designed specifically for 1960-63 Chevy pickup dashboards
- Black alloy gauge-face styling
- Large TFT message center flanked by six analog gauges

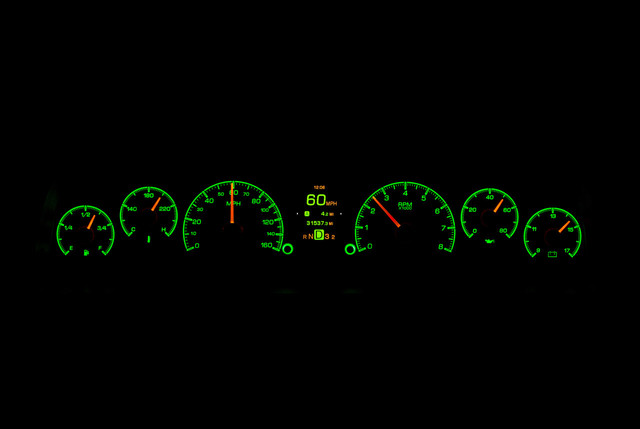

- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes

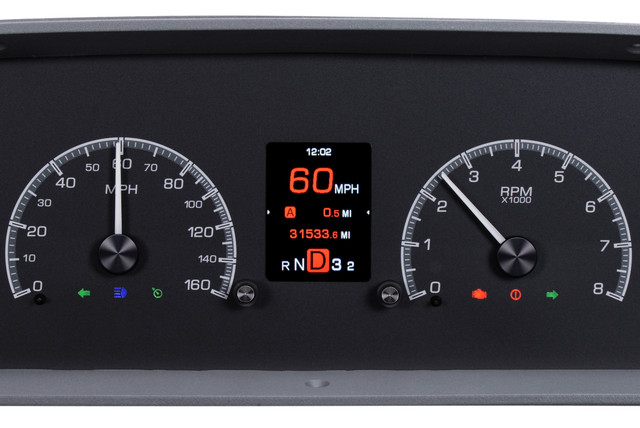

- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning LED built into each analog gauge sweep (except speedometer)
- Onboard capacitive-touch pushbutton controls with button-press feedback via TFT display or included buzzer
- Bluetooth app compatibility for Android and Apple devices for configuration and real-time gauge readouts
- Central control box simplifies wiring with vehicle-harness sourced signals
- Black nickel plated spun-aluminum needle hubs to match control buttons
Specifications
- Part Number: HDX-60C-PU-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Does not fit GMC trucks
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
