Description

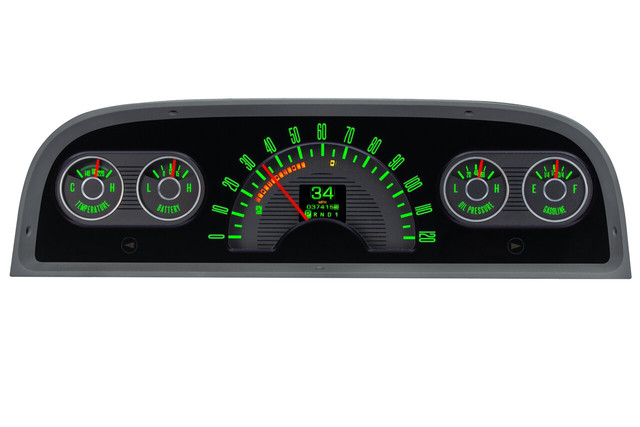

The Dakota Digital RTX-60C-PU-X RTX Instrument System brings modern electronics to your 1960-63 Chevy C10 pickup while preserving the classic, vintage appearance you love. Designed to drop into a stock or reproduction bezel, this system features a bar-graph tachometer tucked beneath a 120 MPH speedometer, factory-style turn signal indicators, and a full-color TFT message center positioned at the center of the cluster. This application does not fit GMC trucks.
The RTX series represents Dakota Digital's latest innovation, combining OEM-style layout, face styling, and indicators with the advanced features of late-model instrumentation. At a casual glance, the cluster appears factory-original, but activating the LED backlighting in your favorite color scheme reveals the true capability of this system.
Each RTX cluster starts with a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. The high-definition TFT message center can be fully configured to display a wide range of vehicle information, and the system utilizes a central control box to simplify installation and setup. The bezel is not included and is shown for visual/presentation purposes only; this system is designed to work with an OEM or reproduction style bezel.
Key Features
- Analog speedometer (0-120 MPH), oil pressure (0-80 psi), water temperature (100-260°F), fuel level (E, 1/4, 1/2, 3/4, F), and voltmeter (9-17 VDC) gauges
- Digital bar graph tachometer (0-8,000 RPM)
- Full-color TFT message center with standard displays including odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, and wait to start, plus two programmable auxiliary indicators
- Over 30 user-selectable color options for needle, sweep, and TFT display colors, with 12 factory preset color themes
- Full LED/RGB backlighting with independently adjustable daytime and nighttime brightness, controlled via the headlight switch
- Pushbutton control via included two-sided rocker switch, with full configuration also available through the free Dakota Digital mobile app (Android and Apple compatible)
Specifications
- Part Number: RTX-60C-PU-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 available separately for relocation when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric bushings
Notes
- Does not fit GMC trucks
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- DIM-1 accessory available separately for on-the-fly rotary brightness control
