Description

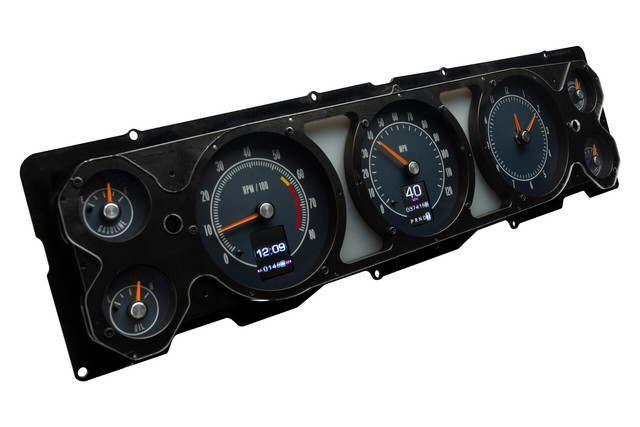

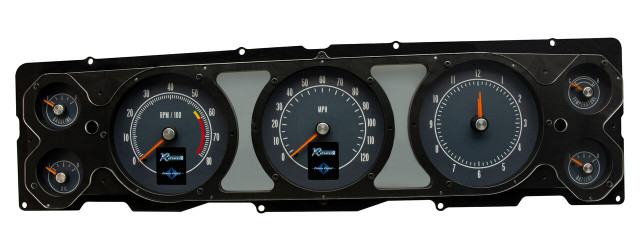

The Dakota Digital RTX-67C-IMP-X is a direct-fit instrument system designed specifically for the 1967 Chevy Caprice/Impala, retaining the stock dash layout while delivering modern electronic performance. Every effort has been made to preserve OEM-style design elements in the gauge layout, face styling, and indicators, so the system looks right at home in the original dash at a casual glance.
Once the lighting is activated, the true capability of the RTX system becomes apparent. CNC-machined housings contain electronics engineered and built in-house by Dakota Digital, combining analog gauge movements with a high-definition TFT message center that can be configured to display a wide range of vehicle information. A central control box simplifies installation and setup.
Note: Bezel is not included; the system is designed to use an OEM or reproduction style bezel.
Key Features
- Direct-fit replacement designed for the 1967 Chevy Caprice/Impala dash

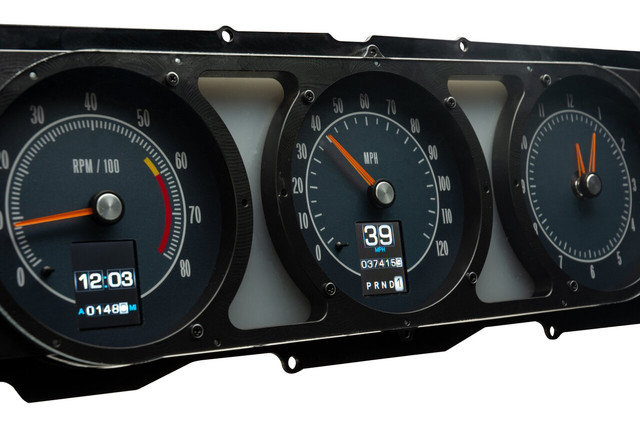

- Analog gauges combined with a high-definition TFT digital message center
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes plus fully custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Adjustable day and night brightness, toggled by the headlight switch
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and more
- Two auxiliary input indicators with user-programmable labels
- Pushbutton rocker switch control for setup and menu navigation
- Configurable through a free mobile app for Android and Apple devices
Specifications
- Part Number: RTX-67C-IMP-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (user-settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with analog gauges and TFT message center
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Bezel is not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control, sold separately
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
