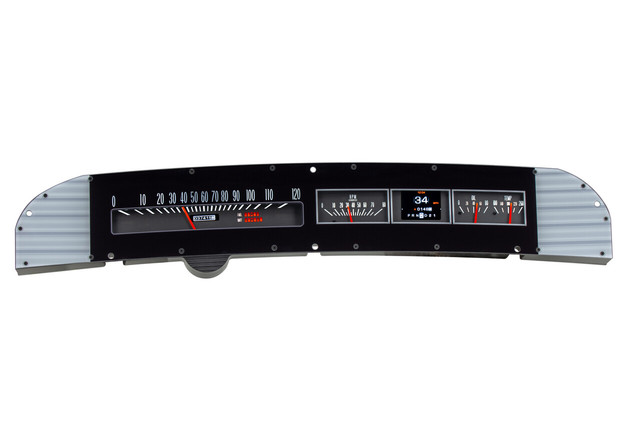

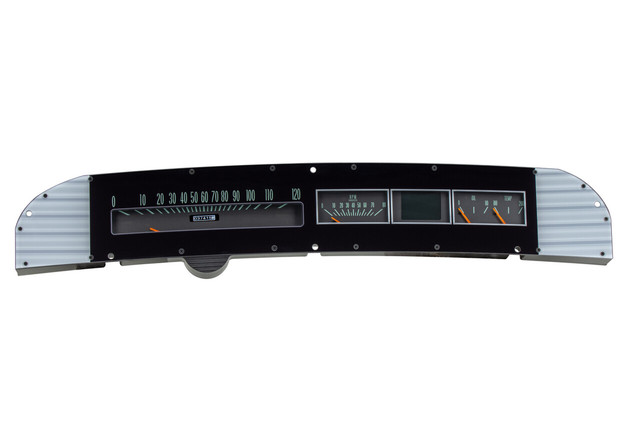

The Dakota Digital RTX-63C-IMP-X RTX Instrument System brings late-model technology to the 1963 Chevy Impala, Bel Air and Biscayne while retaining the factory instrument cluster look. Built upon the original OEM layout, face styling and indicator placement, this system adds LED backlighting, full color-changing capability and TFT message centers for a package that looks stock at a glance but delivers modern functionality at the flip of a switch.

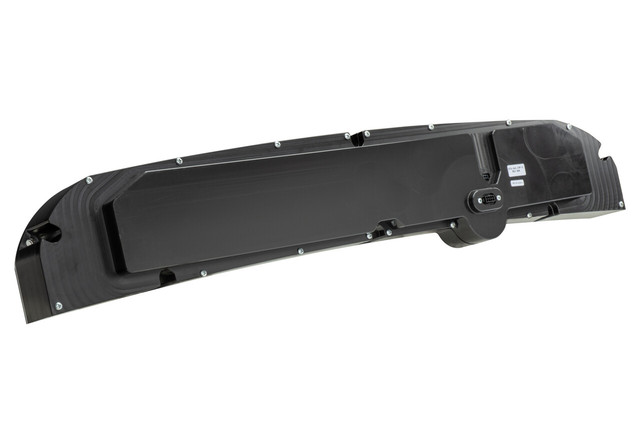

This system works with the vehicle's stock steel front bezel (not supplied) and is compatible with engine combinations ranging from a 283 to a twin turbo LS3. CNC machined housings house electronics designed and built in-house by Dakota Digital, and the high-definition TFT message centers can be configured to display a wide range of vehicle information. A central control box simplifies installation and setup.
Note: Cars equipped with factory A/C will require modifications to the stock gauge bezel ductwork.
Key Features
- Analog gauges with factory-style appearance and full LED backlighting

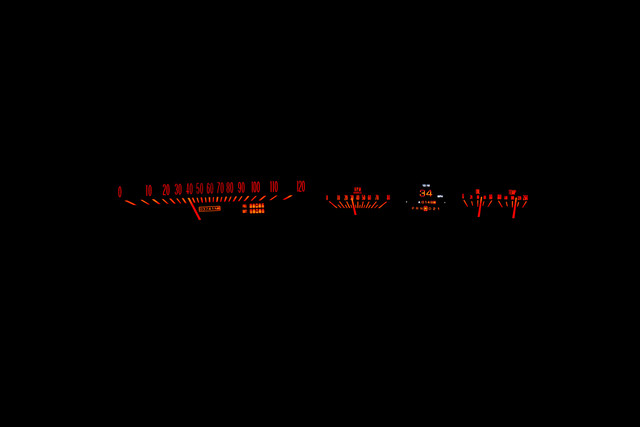

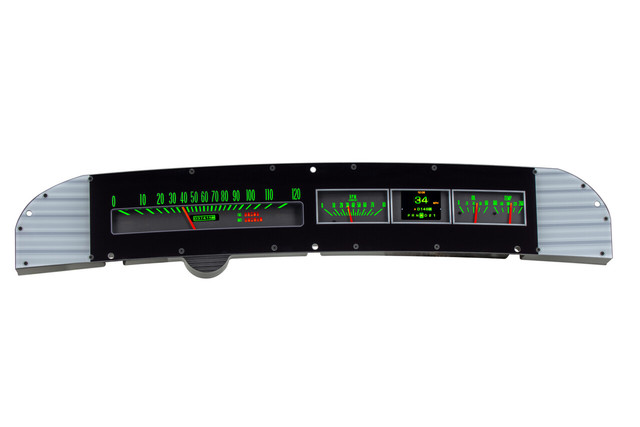

- Over 30 user-selectable color options for independent control of needle color, sweep color and digital TFT display color
- 12 factory preset color themes, plus fully customizable color zone selection
- High-definition TFT message centers for displaying odometer, trip meters, clock and more
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control and more, with two user-programmable auxiliary input indicators
- Daytime and nighttime brightness control via the RTX setup menu, toggled by the headlight switch
- Pushbutton rocker switch control for setup, calibration and menu navigation
- Compatible with Dakota Digital's free mobile app (Android and Apple) for configuration and real-time gauge readouts
Specifications
- Part Number: RTX-63C-IMP-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric bushings
Notes

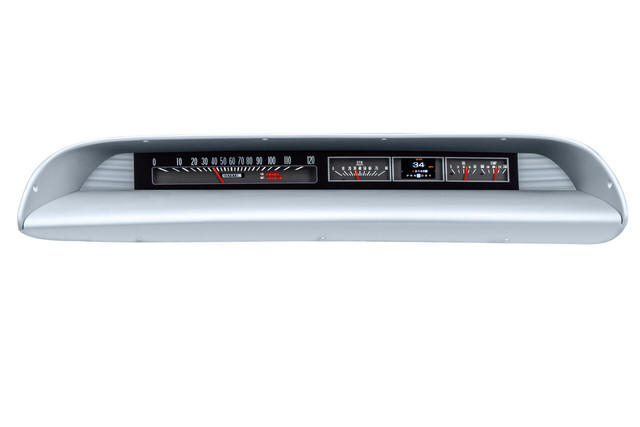

- Stock steel front bezel is required but not included; system is designed to use the OEM or reproduction style bezel
- Vehicles with factory A/C will require modification to the stock gauge bezel ductwork
- Optional GSS-3000 sensor required for gear position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
