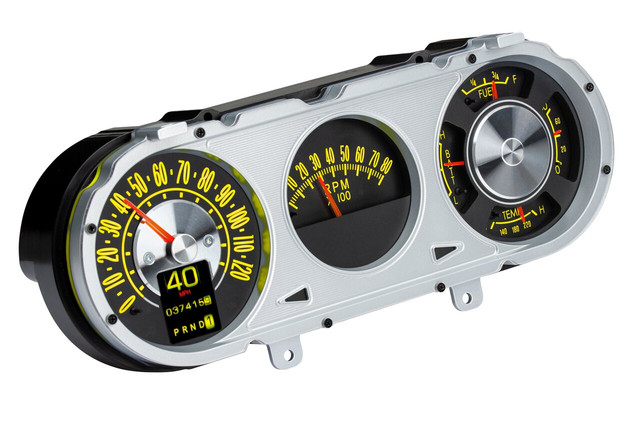

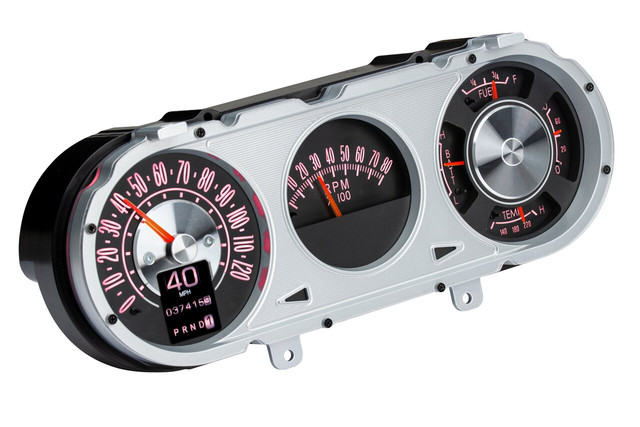

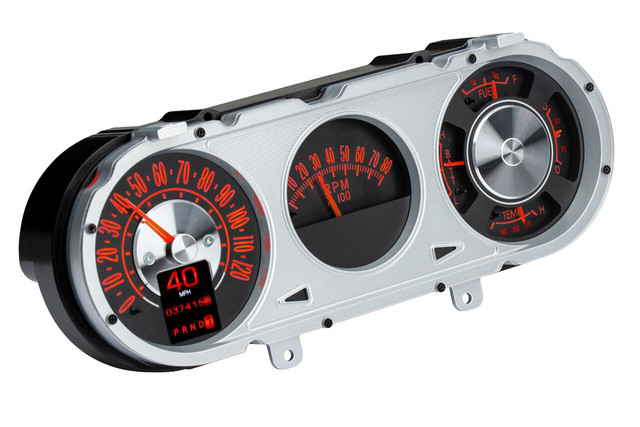

The Dakota Digital RTX-63C-NOV-X RTX Instrument System is a direct-fit upgrade for 1963-65 Chevy II/Nova models, designed to mimic the factory gauge cluster without requiring any dash cutting. Using a stock or reproduction 1963-65 gauge bezel, this system delivers a high-definition TFT message center, LED-lit turn signals in the factory locations, and fully functional analog instruments for oil pressure, coolant temperature, fuel level and system voltage.
As part of the RTX series, this instrument system retains that stock appearance while adding late-model features, with OEM-inspired layout, face styling and indicators. CNC machined housings house in-house designed electronics, and full LED backlighting allows independent color selection for needles, sweeps and the digital TFT display, letting you create an OE look or something bolder.
A central control box simplifies installation and setup, and the system can be calibrated and operated through an included pushbutton rocker switch or the companion mobile app for Android and Apple devices.
Key Features
- Direct-fit replacement designed to mimic the factory 1963-65 Nova instrument cluster
- High-definition TFT digital message center with configurable displays
- LED-lit turn signal indicators in factory locations
- Analog gauges for speedometer, tachometer, oil pressure, water temperature, fuel level and voltmeter
- Over 30 user-selectable color options for needle, sweep and TFT display colors
- 12 factory preset color themes plus full custom color zone selection
- Independently adjustable daytime and nighttime brightness, activated by the headlight switch
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control and more
- Pushbutton rocker switch control plus configuration via free mobile app
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
Specifications
- Part Number: RTX-63C-NOV-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Kit Includes
- RTX instrument cluster with TFT message center and analog gauges
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with 10 ft harnesses
- Cable driven speed sensor/generator with 10 ft harness
- Bushing assortment
Notes
- Gauge bezel is not included; system is designed to use an OEM or reproduction style 1963-65 bezel
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Gear Position indicator requires an optional GSS-3000 sensor (sold separately)
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
