Description
Description

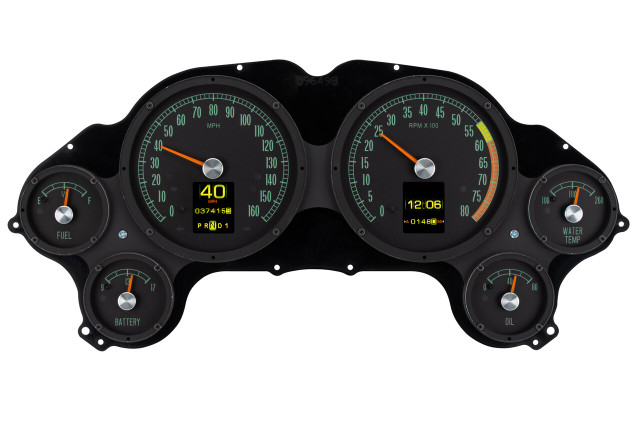

The Dakota Digital RTX-65C-VET-X brings the RTX series to the 1963-67 Chevy Corvette in 1965-67 styling, delivering a stock-appearing instrument cluster with modern electronics underneath. Every design detail, from layout to face styling and indicators, has been developed to mirror the original equipment appearance, so a casual glance won't give away the upgrade until the LED backlighting is switched on.
Each RTX housing is CNC machined and fitted with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of trip, performance, and diagnostic information, while a central control box simplifies installation and setup. The system is designed to use an OEM or reproduction style bezel, which is not included.
Key Features
- Analog gauges include Speedometer (0-160 MPH), Tachometer (0-8,000 RPM), Oil Pressure (0-80 psi), Water Temperature (100-260°F), Fuel Level (E, 1/4, 1/2, 3/4, F), and Voltmeter (9-17 VDC)
- High-definition TFT digital message center with Odometer, Dual (A/B) Trip Meter, 12-hour Clock, and Estimated Range/Miles to Empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall

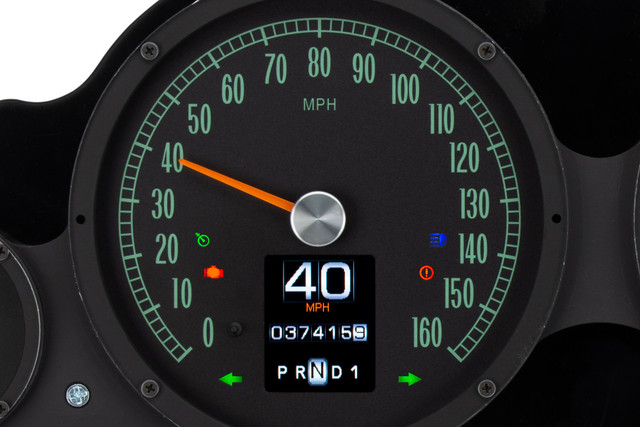

- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, and two user-programmable auxiliary inputs
- Each analog gauge sweep (except speedometer) includes a red LED indicator for quick notice of a warning condition
- Over 30 user-selectable color options for independently changing needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting with separate daytime and nighttime themes, adjustable via the headlight switch activation
- Pushbutton rocker switch control for driving mode and setup menu navigation, with feedback through the TFT display or included buzzer
- Free mobile app (Android and Apple compatible) for complete system configuration and real-time gauge readouts
Specifications
- Part Number: RTX-65C-VET-X
- Vehicle Fitment: 1963-67 Chevy Corvette (1965-67 face styling)
- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction; Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is required)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed for your application
- Optional GSS-3000 sensor required for Gear Position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary dimmer control
