Description
Description

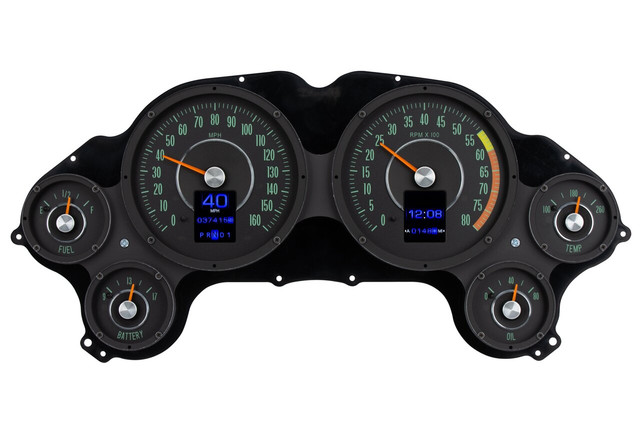

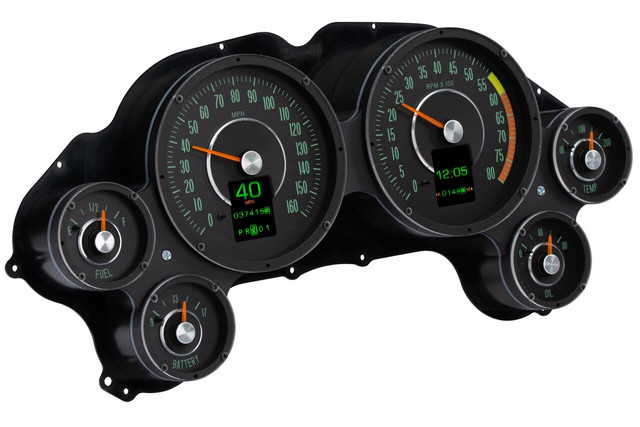

The Dakota Digital RTX-64C-VET-X is a 1964-style RTX Instrument System engineered for 1963-67 Chevy Corvette applications. This system retains the stock gauge layout and face styling you expect while adding the late-model features and technology that today's builds demand. CNC machined housings house in-house designed electronics, and a high-definition TFT message center can be configured to display a wide range of vehicle information.

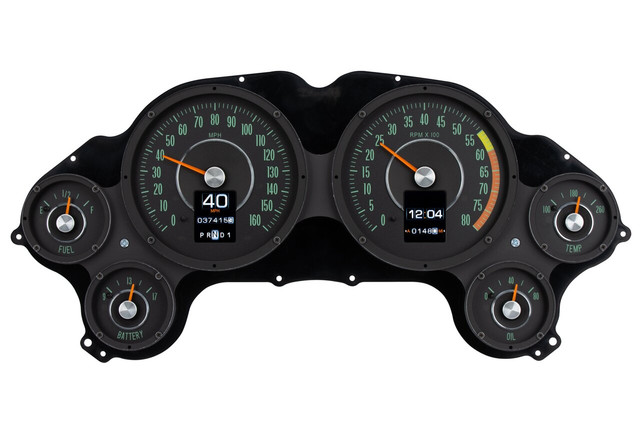

Full LED backlighting with over 30 user-selectable color options lets you independently set needle color, sweep color, and digital display color, with 12 factory preset themes available for quick setup or full custom color selection. A central control box simplifies installation and setup, and calibration can be handled through the included pushbutton switch or the companion mobile app for Android and Apple devices.
This system uses an OEM or reproduction style bezel; the bezel is not included.
Key Features
- CNC machined housings with in-house designed and built electronics
- High-definition TFT message center, fully configurable
- Over 30 user-selectable color options for needles, sweep, and digital display
- 12 factory preset color themes plus full custom color zone selection
- Full RGB LED backlighting with separate daytime and nighttime themes
- Central control box for simplified installation and setup
- Pushbutton rocker switch control with button-press feedback via TFT or included buzzer
- Configurable through included pushbutton switch or free mobile app (Android/Apple)
- Dual (A/B) trip meter, clock, estimated range, and performance meters including 0-60 timer and 1/4 and 1/8 mile times

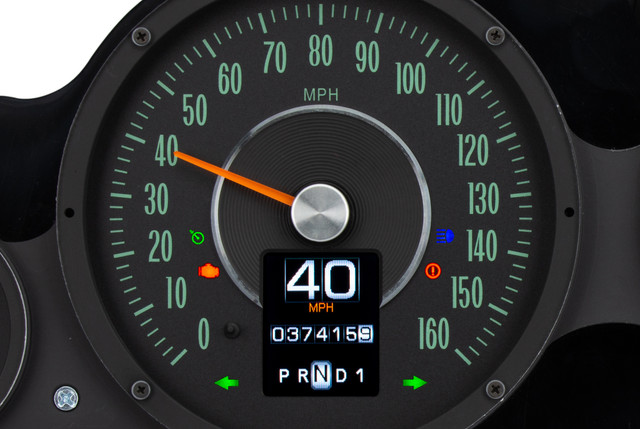

- Turn signal, high beam, check engine, parking brake, cruise control, and other built-in indicators, plus two user-programmable auxiliary indicators
Specifications
- Part Number: RTX-64C-VET-X
- Fitment: 1963-67 Chevy Corvette ('64 style gauge face)
- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor, 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor, 1/8" NPT, solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- On-the-fly rotary dimmer control available via optional DIM-1 accessory
