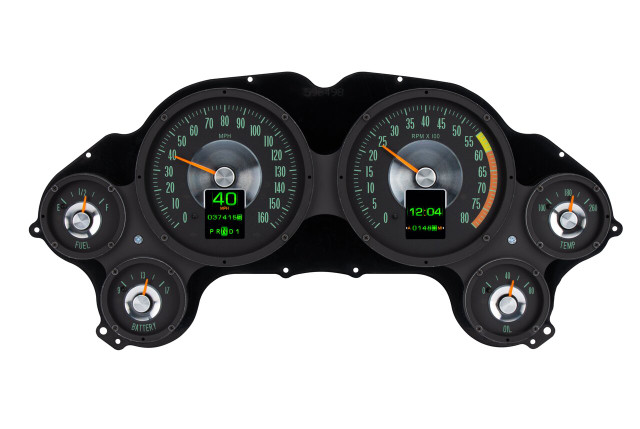

The Dakota Digital RTX-63C-VET-X RTX Instrument System brings late-model technology to your 1963-67 Chevy Corvette while retaining the stock 1963-style gauge face layout. CNC-machined housings and in-house designed electronics combine OEM-inspired styling with modern features, so the system looks right at home on the dash while offering capabilities far beyond the original equipment it replaces.
Each analog gauge includes a high-definition TFT message center that can be configured to display a wide range of operating and performance information. A central control box simplifies installation and setup, and full LED backlighting with user-selectable colors lets you tailor the look to your preference, day or night.
This system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features
- Analog gauges include Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, and Voltmeter
- Digital message centers display Odometer, Dual (A/B) Trip Meter, 12-hour Clock, and Estimated Range/Miles to Empty
- Performance meters include 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, and Wait to Start, plus two user-programmable auxiliary input indicators
- Each analog gauge sweep (except speedometer) includes a red LED indicator for quick notice of a warning condition
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors, with 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch; DIM-1 accessory available for on-the-fly rotary control
- Full LED/RGB backlighting for sharp visibility day or night
- Pushbutton control via included two-sided rocker switch for driving mode and setup menu navigation
- Complete configuration also available through the free Dakota Digital mobile app (Android and Apple)
Specifications
- Part Number: RTX-63C-VET-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Gauge Style: 1963 Chevy Corvette ('63 style) face layout
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (part 130011 available separately for relocation of the pulse generator when additional clearance is needed; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor, sold separately
