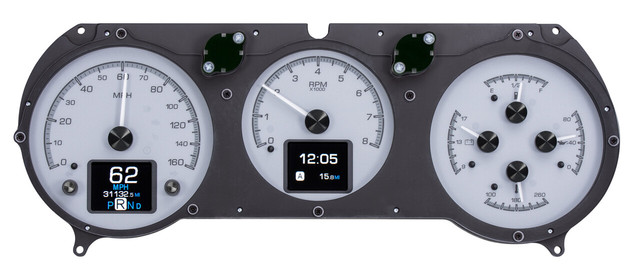

Bring your 1964-65 Chevy Chevelle, Malibu, or El Camino up to modern spec with the Dakota Digital HDX-64C-CVL-S instrument system, featuring a silver alloy gauge-face styling. This direct-fit system attaches to a stock or reproduction bezel (available separately) and delivers six analog gauge sweeps along with a pair of high-visibility TFT message centers, combining classic muscle car styling with modern instrumentation technology.
The HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons, and the system includes dead-faced indicators along with a red, settable warning light for each gauge.
Installation is simplified through a central control box that sources signals from the vehicle harness, paired with supplied solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Silver alloy gauge-face styling
- Six analog gauge sweeps plus dual TFT digital message centers
- Over 30 user-selectable color options for needles, sweeps, and digital displays independently
- 12 factory preset color themes or fully customizable color zones

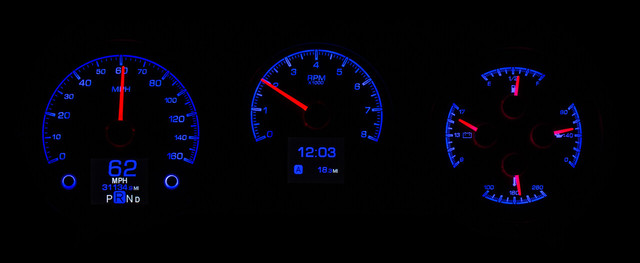

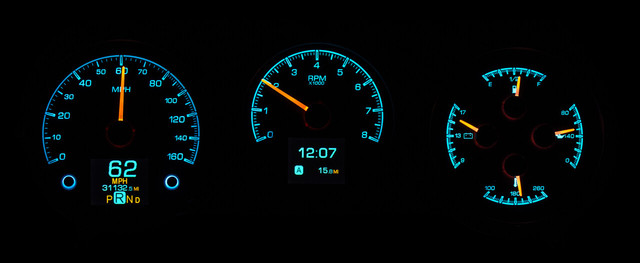

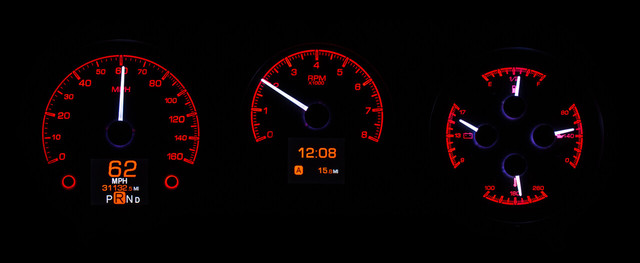

- Full LED/RGB backlighting with unique daytime and nighttime themes
- Capacitive-touch onboard pushbutton controls with buzzer feedback
- Bluetooth app control and real-time gauge readouts for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs
- Central control box simplifies installation with vehicle-harness sourced signals
Specifications
- Part Number: HDX-64C-CVL-S
- Speedometer: 0-160 MPH, split scale provides resolution of a 120 MPH speedometer with a top end range of 160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel, available separately
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- On-the-fly rotary dimmer control available with optional DIM-1 accessory
- Speedometer calibration can be bypassed if GPS-50-2 is used
