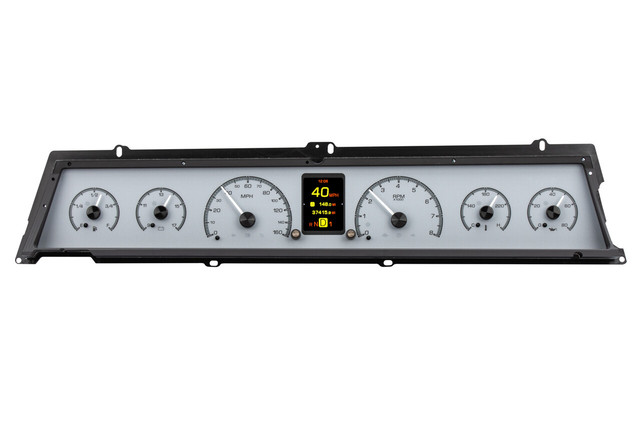

The Dakota Digital HDX-66C-CVL-S is a direct-fit HDX instrument system engineered specifically for the long, narrow gauge housing found in the 1966-67 Chevy Chevelle, Malibu, and El Camino. This Silver Face version combines six analog gauge sweeps with a large, full-color TFT message center, bringing modern instrumentation to the classic Chevelle dash without altering its original appearance.
The system allows independent control of illumination colors for gauge readings, needles, and the message center, giving owners the ability to customize the look to match their interior. Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub features black nickel-plated spun-aluminum construction to match the control buttons.
Installation is simplified through a central control box that interfaces with vehicle-harness sourced signals and includes solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included with this kit.
Key Features
- Six analog gauge sweeps paired with a full-color TFT digital message center
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for independent control of needle, sweep, and digital display colors
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Onboard capacitive-touch pushbuttons with LED-lit feedback
- Bluetooth app compatibility for Apple and Android devices for configuration and real-time readouts
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-66C-CVL-S
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Face Color: Silver Alloy
Included Sensors
- Water Temperature: 1/8" NPT, ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, 10 ft harness, requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel is not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary dimmer control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
