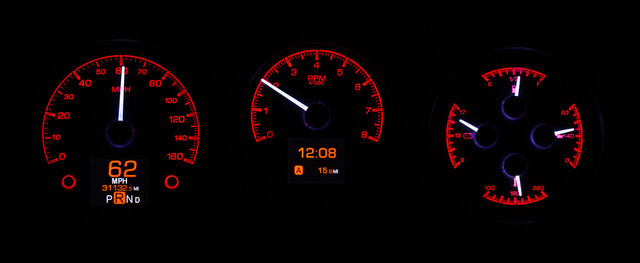

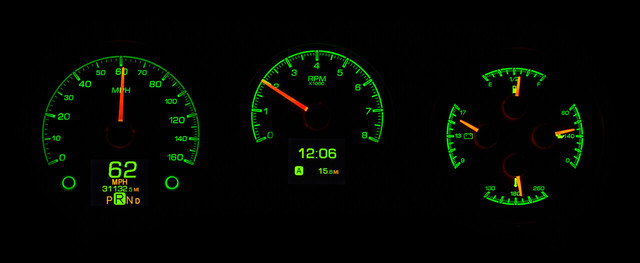

The Dakota Digital HDX-64C-CVL-K is a direct-fit instrument system engineered specifically for 1964-65 Chevy Chevelle, Malibu, and El Camino models. Featuring a black face styling, this system attaches directly to a stock or reproduction bezel (sold separately) and delivers six analog gauge sweeps paired with a pair of high-visibility TFT message centers for a clean, modern upgrade to your classic muscle car.
Each HDX system allows independent control of illumination colors for gauge readings, needles, and message centers, giving you full customization to match your vehicle's style. Calibration and personal settings are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to complement the button finish.
All HDX instrument systems feature dead-faced indicators, including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators, plus a red, settable warning light for each gauge. The included central control box simplifies installation using vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Direct-fit design for 1964-65 Chevy Chevelle, Malibu, and El Camino
- Black alloy gauge-face styling
- Six analog gauge sweeps plus dual TFT message centers
- Over 30 user-selectable color options for needles, sweeps, and digital displays
- 12 factory preset color themes or full custom color zone selection
- Full LED/RGB backlighting for sharp day and night visibility
- Onboard capacitive-touch pushbutton controls with buzzer feedback
- Configurable through Bluetooth app for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red settable warning LED indicator built into each analog gauge sweep
- Central control box simplifies wiring with vehicle-harness sourced signals
Specifications
- Part Number: HDX-64C-CVL-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
- Cable-driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (approximately 5" clearance required between cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel, available separately
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
