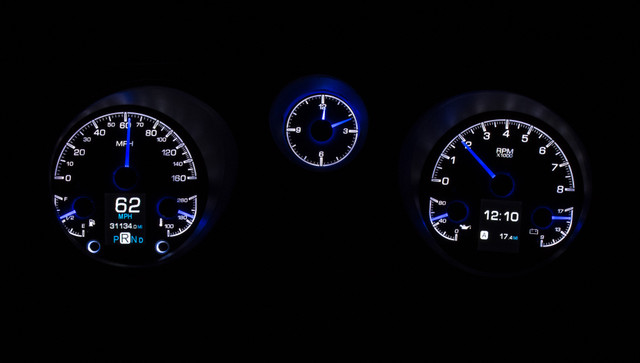

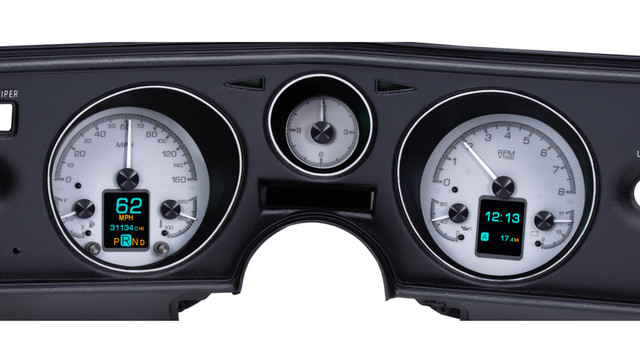

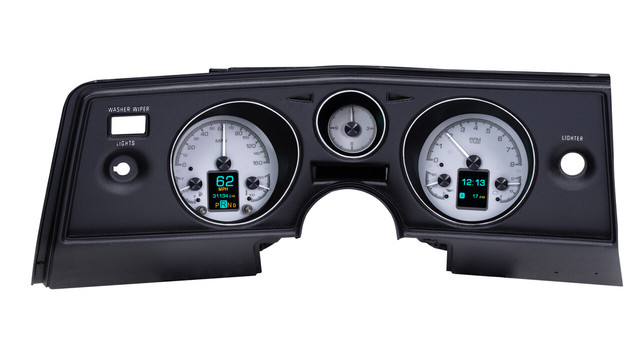

The Dakota Digital HDX-69C-CVL-S is a direct-fit HDX instrument system designed for the 1969 Chevy Chevelle, Malibu and El Camino, installing directly into the original or reproduction instrument housing for this one-year-only dash design. Featuring silver face gauge styling, the system combines three analog needles and a full-color TFT message center in each large opening, with an analog clock positioned between the two displays.

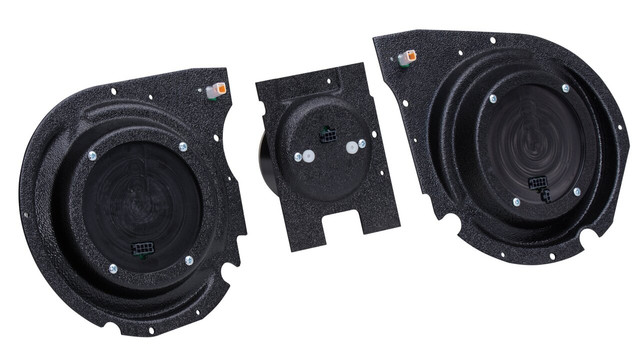

Each HDX system allows independent illumination colors for gauge readings, needles, and message centers, with calibration and personal settings manipulated through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied solid-state sending units cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling with three analog needles and full-color TFT message centers
- Analog 12-hour clock positioned between the two main gauge clusters

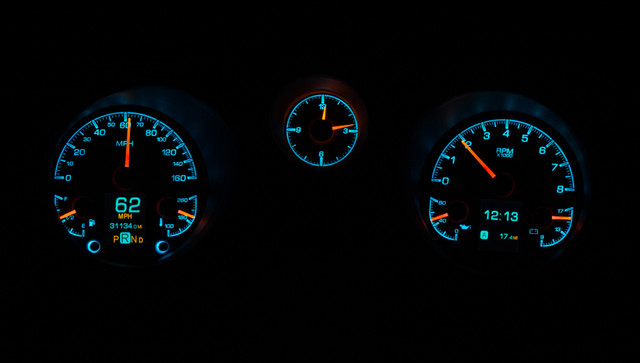

- Independently selectable illumination colors for needles, gauge sweeps, and digital displays, with over 30 user-selectable color options

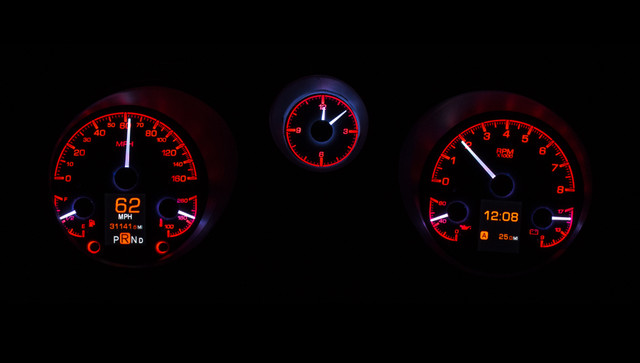

- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting for sharp contrast day and night
- Built-in capacitive-touch pushbuttons with LED lighting, plus Bluetooth app control for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each gauge sweep (except speedometer)
- Central control box for simplified installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-69C-CVL-S
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer, with a top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock display
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness (sensor requires approximately 5" clearance between the cable drive output and any obstruction; part # 130011 for pulse generator relocation sold separately)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary dimmer control, sold separately
