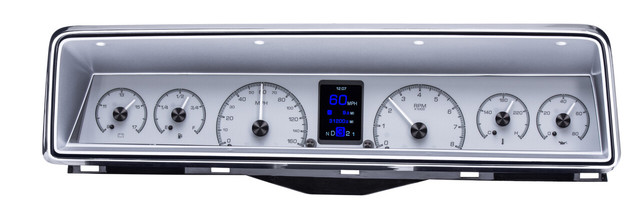

The Dakota Digital HDX-66C-NOV-S is a direct-fit instrument system engineered specifically for the 1966-67 Chevy Nova, featuring a silver alloy gauge-face styling. Built around a full-color TFT message center flanked by backlit analog needles, the system is housed in a CNC machined assembly that attaches to a stock or reproduction bezel just as the factory intended.
This HDX system allows the user to select independent illumination colors for the gauge readings, needles, and message center, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied solid-state sending units cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling with backlit analog needles surrounding a full-color TFT message center
- CNC machined housing designed to attach to a stock or reproduction bezel (bezel not included)
- Over 30 user-selectable color options for independently changing needle, sweep, and digital TFT display colors
- 12 factory preset color themes, or fully customizable color zones

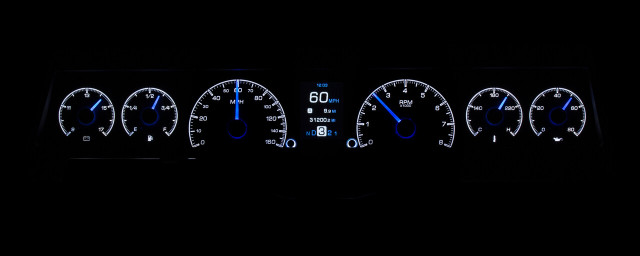

- Full LED/RGB backlighting with independent daytime and nighttime brightness settings, toggled by the headlight switch
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)
- Built-in, LED-lit capacitive touch pushbuttons for setup and menu navigation, plus full configuration available through the Bluetooth app
- Black nickel plated spun-aluminum needle hubs to match the control buttons
Specifications
- Part Number: HDX-66C-NOV-S
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires the optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- The DIM-1 is a common accessory for adding on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
