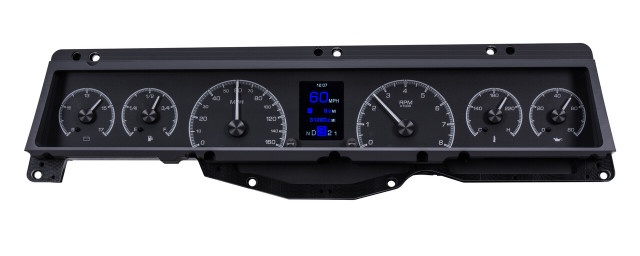

The Dakota Digital HDX-66C-NOV-K brings a fully modern instrument system to the 1966-67 Chevy Nova, featuring a black alloy gauge-face design housed in a CNC-machined assembly that attaches to a stock or reproduction bezel. A full-color TFT message center anchors the cluster, flanked by backlit analog needles for a clean, high-tech look that still complements the car's original dash layout.
Each HDX system allows independent control of illumination colors for gauge readings, needles, and the message center display. Settings and calibration are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the button finish.
The system includes dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators, along with a red, settable warning light built into each gauge sweep. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting to included solid-state sending units.
Key Features
- Black alloy gauge-face styling with full-color TFT message center
- Backlit analog needles flanking the digital display

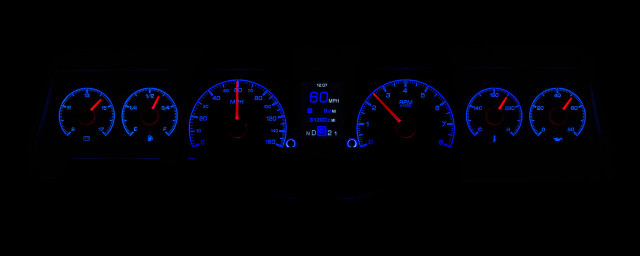

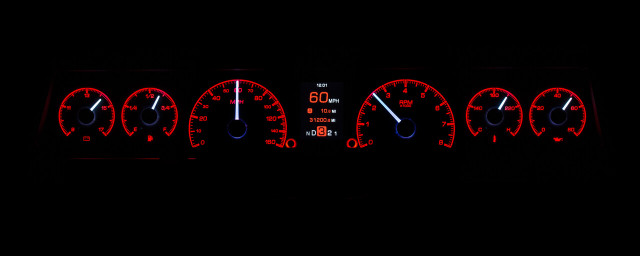

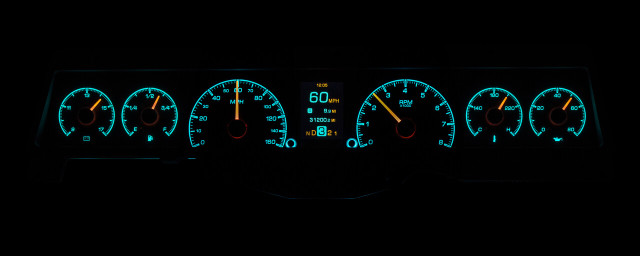

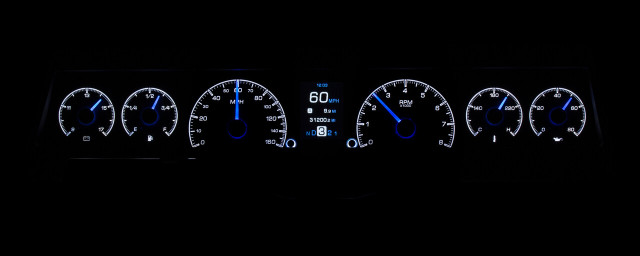

- Over 30 user-selectable color options for needles, sweep, and TFT display, plus 12 factory preset color themes
- Full LED/RGB backlighting with independent daytime and nighttime brightness settings
- Built-in capacitive-touch pushbutton controls with buzzer feedback
- Bluetooth app compatibility for Apple and Android devices for setup and real-time readouts
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-programmable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- CNC machined housing designed to attach to a stock or reproduction bezel
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-66C-NOV-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH, top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
