Description

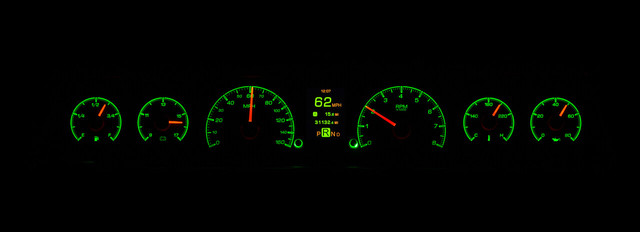

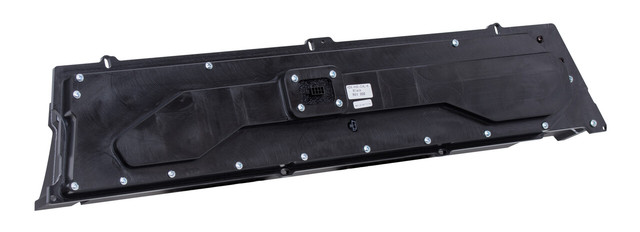

The Dakota Digital HDX-66C-CVL-K is a direct-fit HDX instrument system engineered specifically for the 1966-67 Chevy Chevelle, Malibu, and El Camino. Designed to fit the long, narrow factory instrument housing, this system blends six analog gauge sweeps with a large, full-color TFT message center, bringing a modern interior upgrade without altering the classic appearance of the dash. This version features Black Alloy gauge-face styling.
Owners can independently select illumination colors for the gauge readings, needles, and message center displays, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. The system also includes dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable functions, along with a red, settable warning light built into each gauge.
Installation is simplified through a central control box that sources signals from the vehicle harness and connects to supplied, solid-state sending units. This system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Six analog gauge sweeps paired with a full-color TFT digital message center
- Black Alloy gauge-face styling
- Independently selectable illumination colors for needles, gauge sweeps, and message center, with over 30 user-selectable color options
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with adjustable daytime and nighttime brightness, toggled by the headlight switch
- Black nickel plated spun-aluminum needle hubs to match control buttons
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each gauge
- Onboard capacitive-touch pushbutton controls with LED lighting, plus Bluetooth app control for Apple and Android devices
- Central control box simplifies installation using vehicle-harness sourced signals and supplied solid-state sending units
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Standard displays include odometer, dual trip meter, 12-hour clock, and estimated range/miles to empty
Specifications
- Part Number: HDX-66C-CVL-K
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Face Style: Black Alloy
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
